System Block Diagram

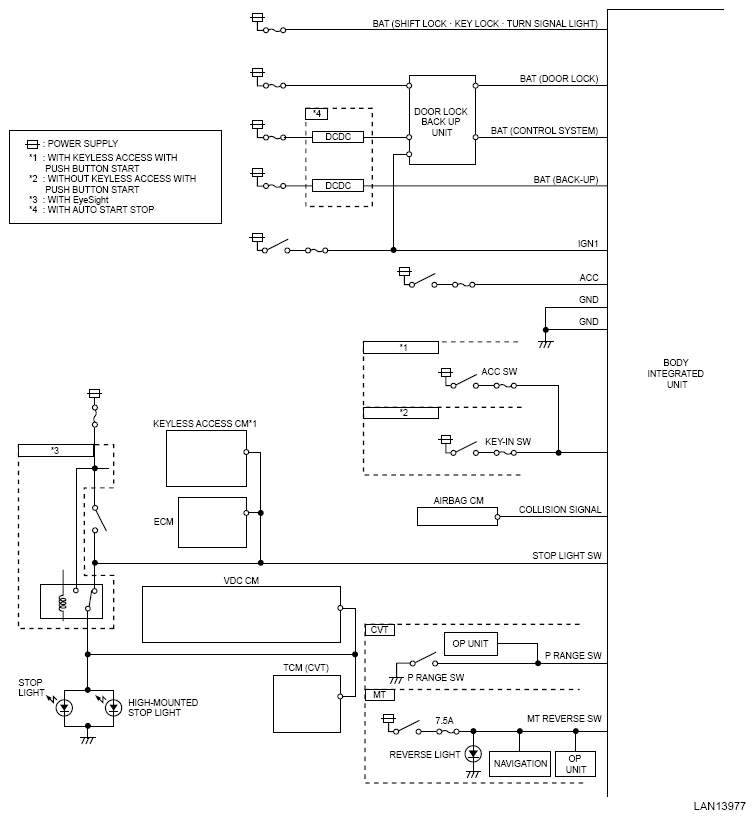

G13944322Courtesy of SUBARU OF AMERICA, INC.

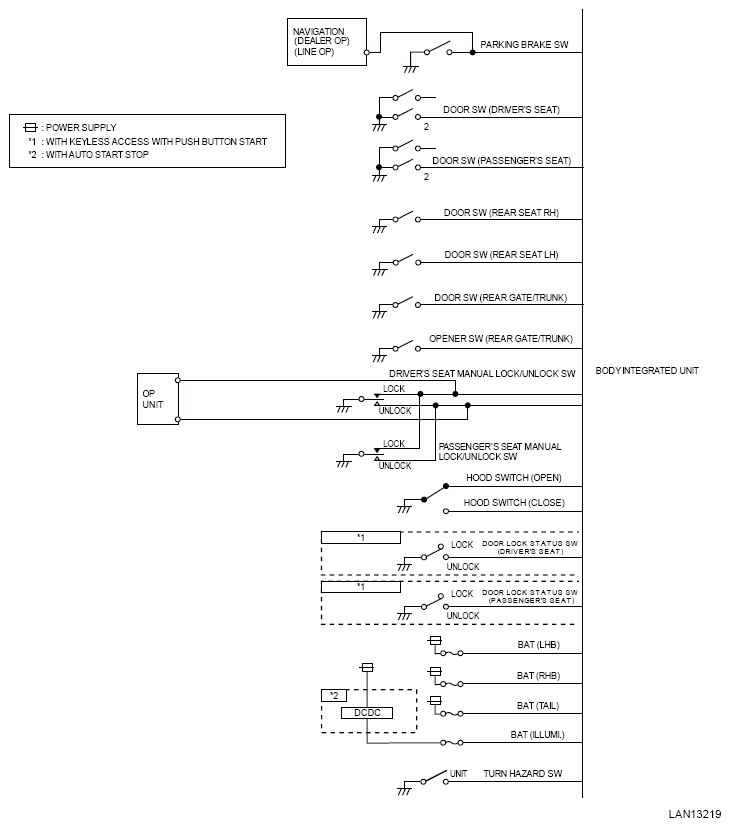

G13617225Courtesy of SUBARU OF AMERICA, INC.

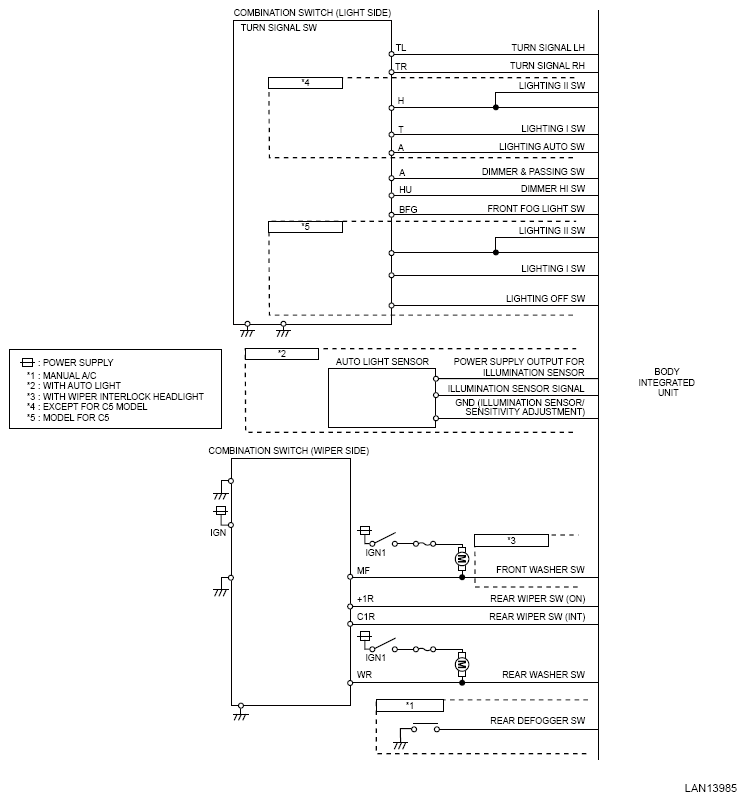

G13944324Courtesy of SUBARU OF AMERICA, INC.

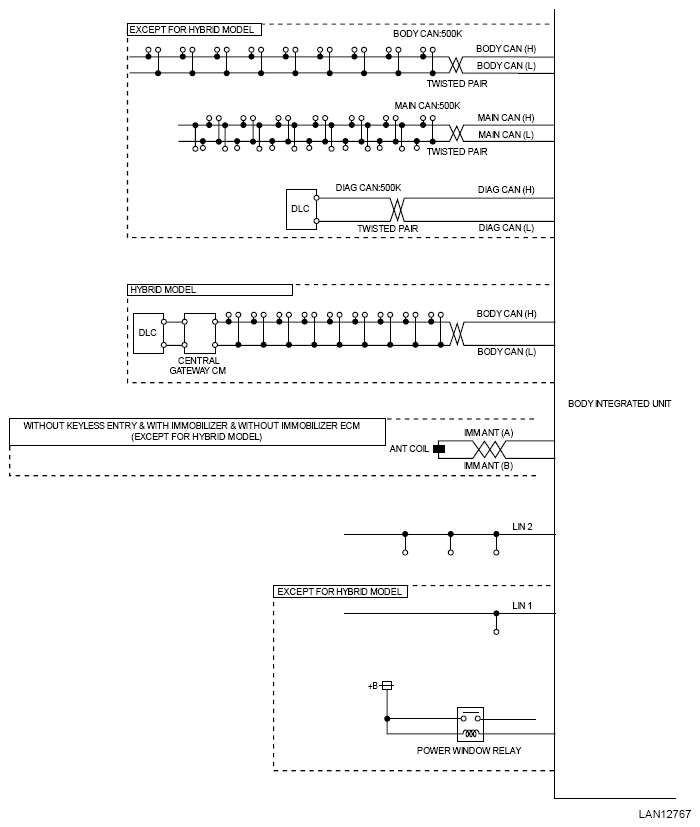

G13246308Courtesy of SUBARU OF AMERICA, INC.

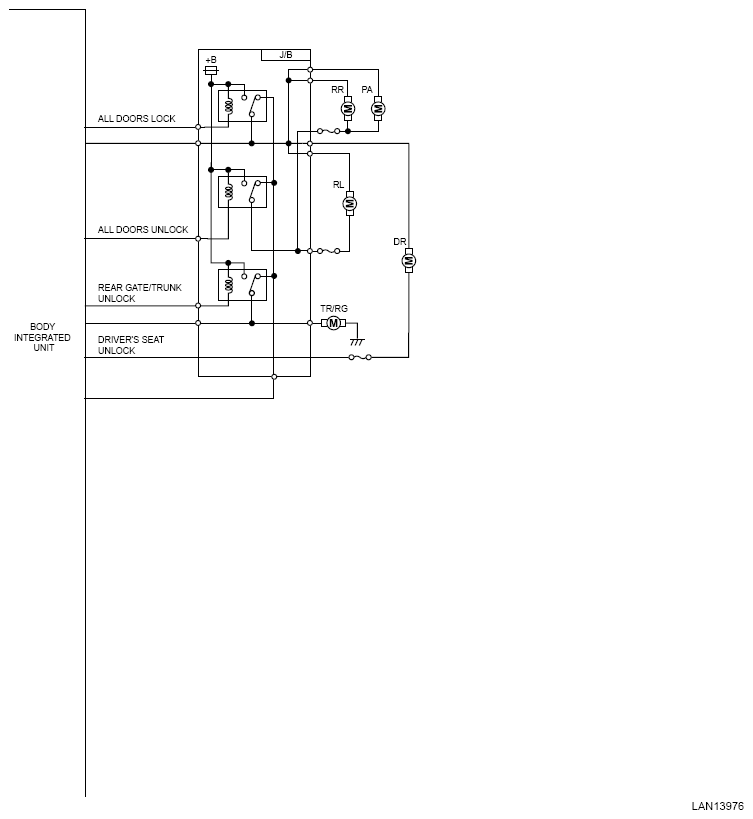

G13944326Courtesy of SUBARU OF AMERICA, INC.

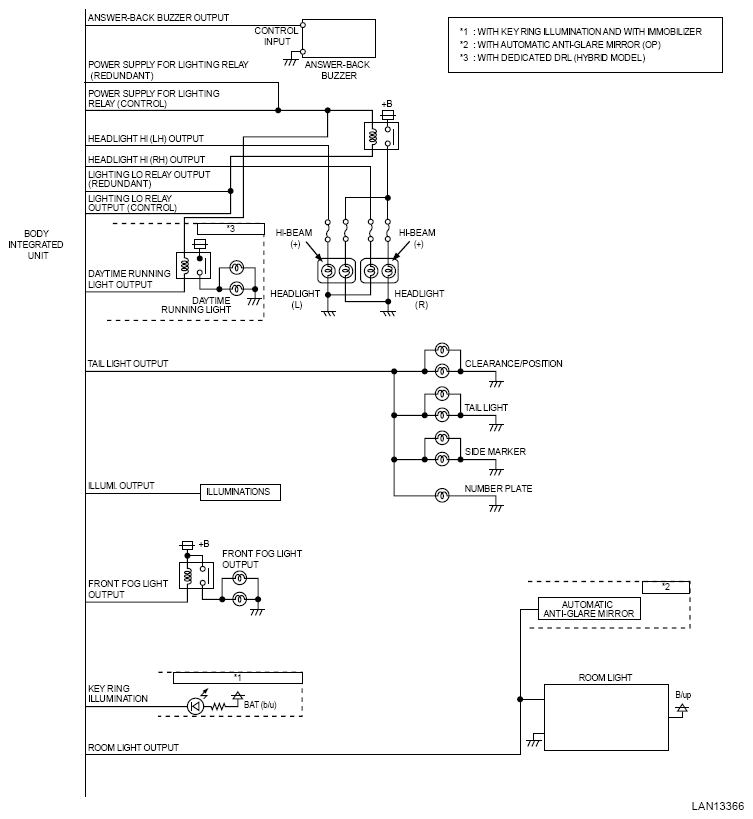

G13617229Courtesy of SUBARU OF AMERICA, INC.

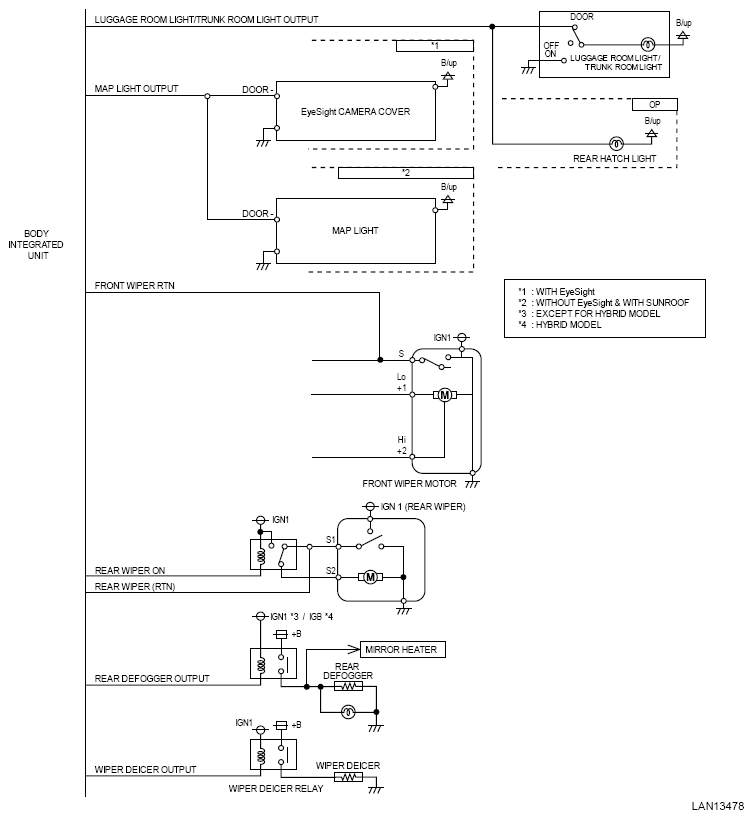

G13617230Courtesy of SUBARU OF AMERICA, INC.

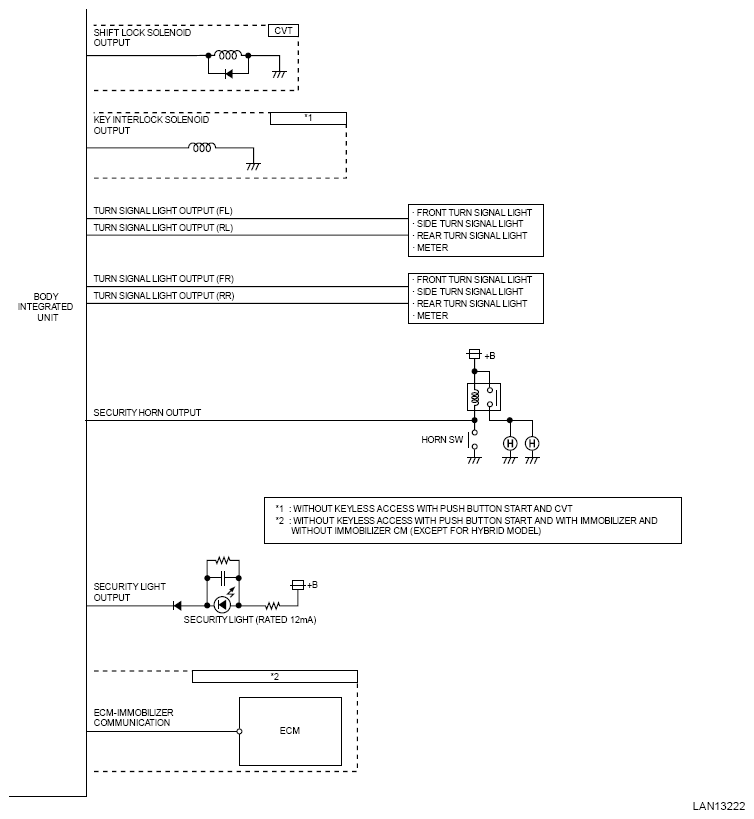

G13617231Courtesy of SUBARU OF AMERICA, INC.
