Oil Pump
Oil Pump

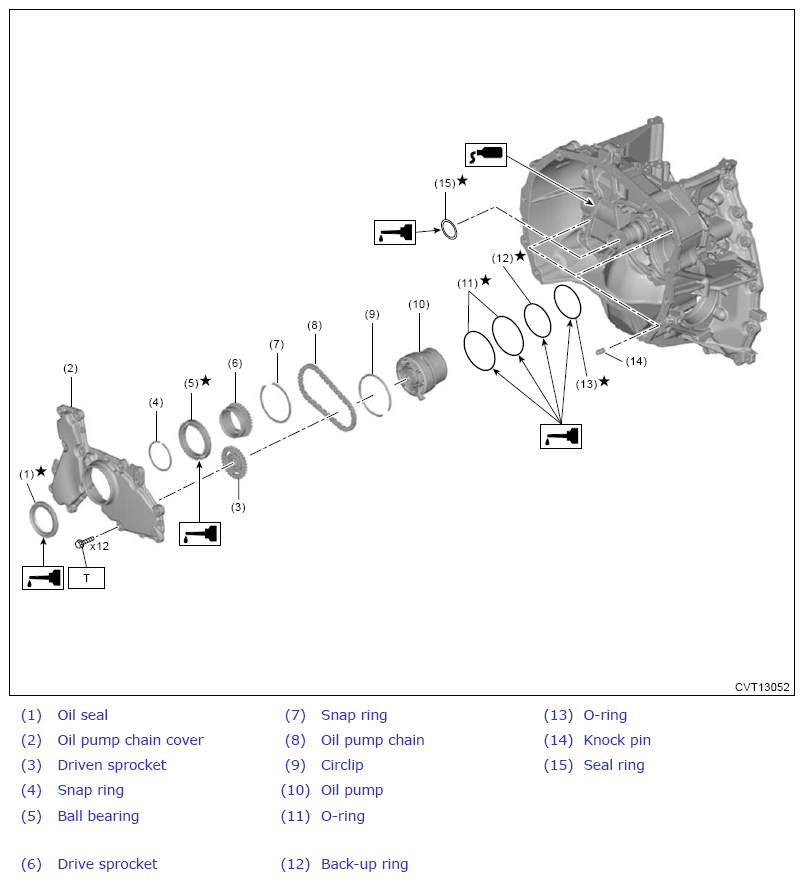

Fig 1: Oil Pump Components
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T: 21 (2.1, 15.5)
Courtesy of SUBARU OF AMERICA, INC.
