Check List for Interview: Check

WARNING: This page is about a different variant/trim than selected.

Inspect the following items regarding the vehicle's state.

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

NOTE:

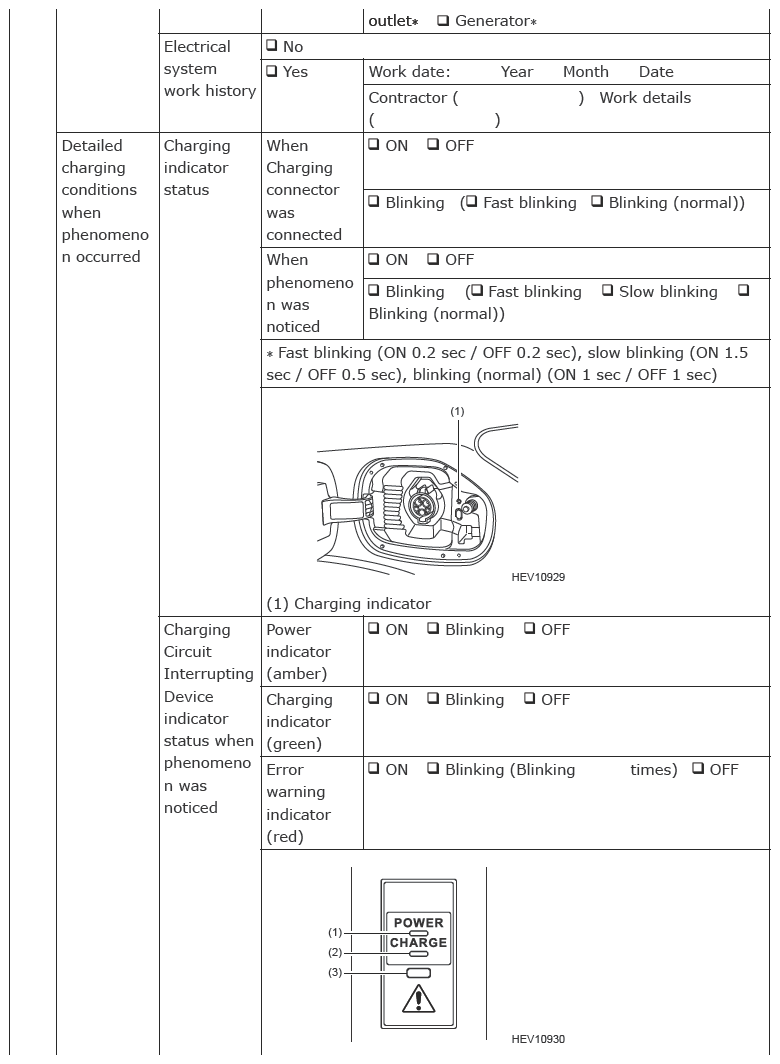

Items to be displayed	ON time	OFF time	REMARKS
Light ON	Always	-	Indicates that voltage is being applied.
Fast blinking	0.2 sec.	0.2 sec.	Indicates that a charging-related error has occurred.
Blinking (normal)	1 second	1 second	Indicates timer charging standby status.

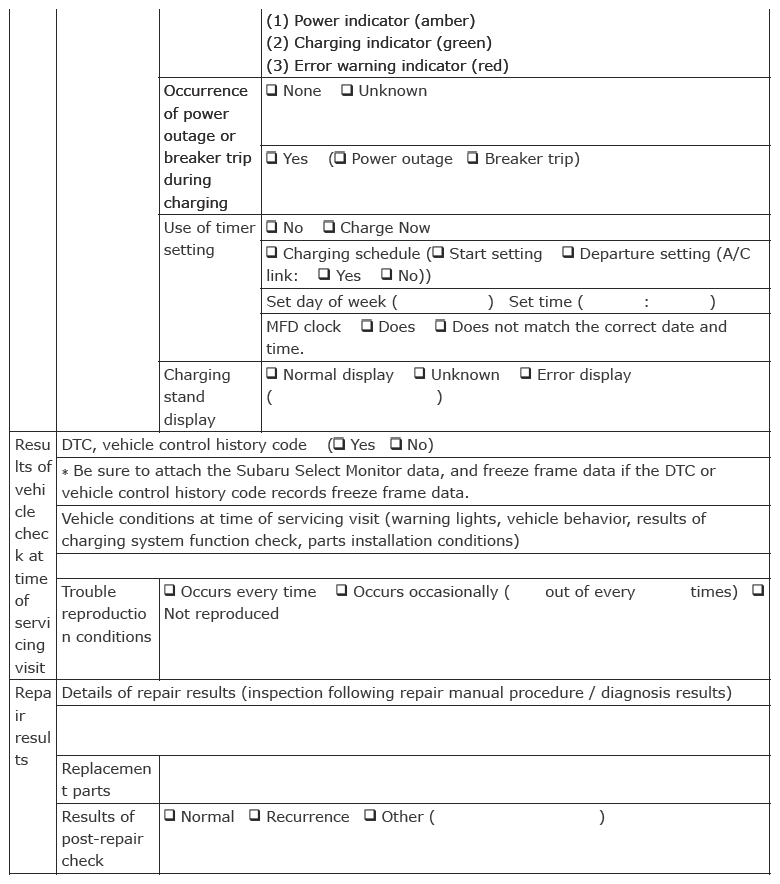

Indicator	Contents
Power indicator (amber)	Illuminates when power supply is connected. Blinks when heating of the power supply outlet is detected.
Charging indicator (green)	Illuminates when charging. Blinks when charging current limit is activated.
Error warning indicator (red)	Blinks or illuminates when an error occurs. (For details, refer to the service information.)
