Exhaust System: Muffler: Removal

CAUTION: Vehicle components are extremely hot after driving. Be wary of receiving burns from heated parts.
  1. Disconnect the rear exhaust pipe and muffler.

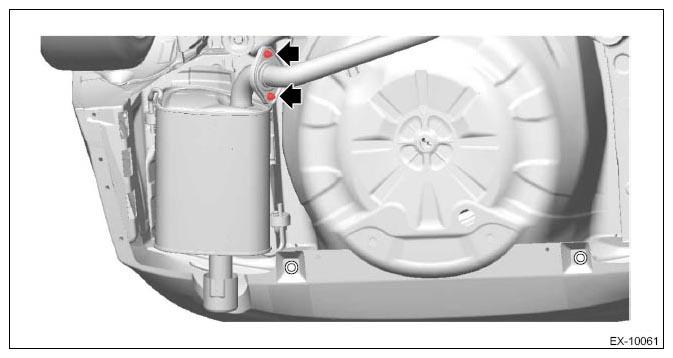

    • Impreza 4 door model
      G11253539Courtesy of SUBARU OF AMERICA, INC.

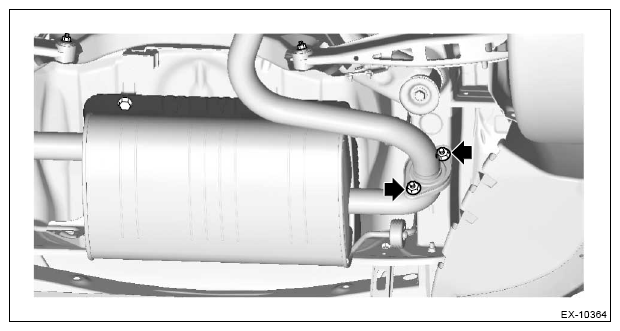

    • Impreza 5 door model and Crosstrek model
      G13230503Courtesy of SUBARU OF AMERICA, INC.
  2. Apply a coat of spray type lubricant to the mating area of cushion rubber.
  3. Remove the muffler.
    CAUTION: Be careful not to let the muffler contact the rear bumper.

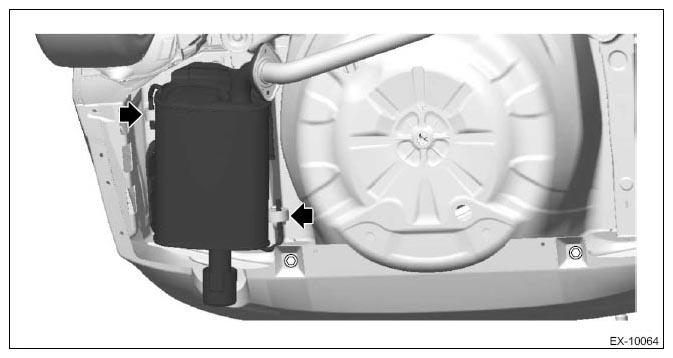

    • Impreza 4 door model
      G11253544Courtesy of SUBARU OF AMERICA, INC.

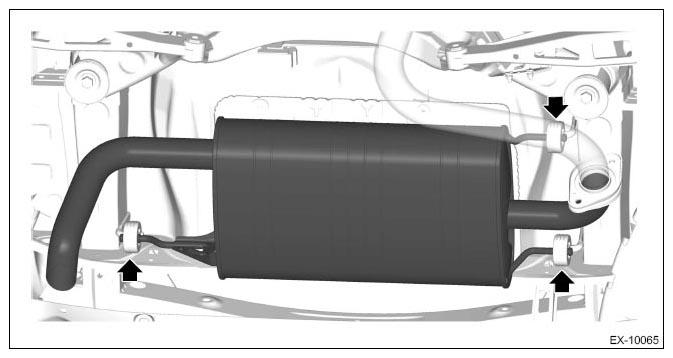

    • Impreza 5 door model and Crosstrek model
      G11253545Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the rear exhaust cover.
    NOTE: Remove if necessary.

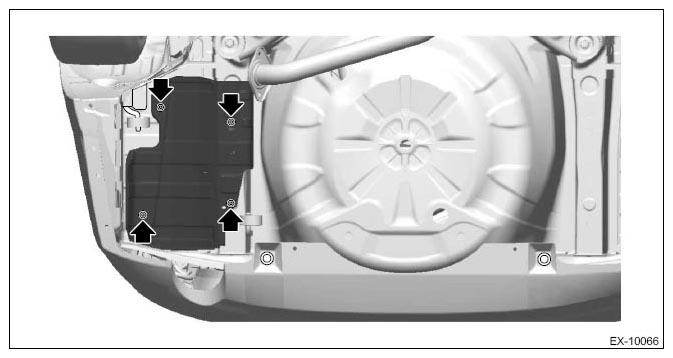

    • Impreza 4 door model
      G11253546Courtesy of SUBARU OF AMERICA, INC.

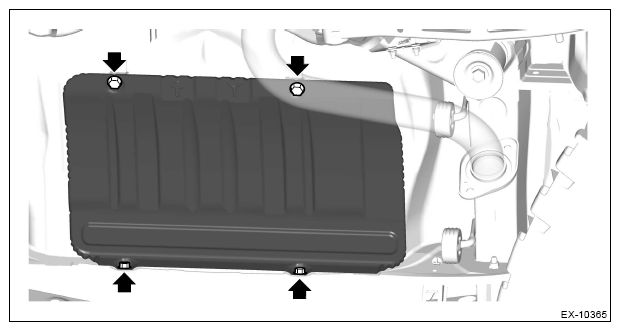

    • Impreza 5 door model and except for Crosstrek hybrid model
      G13230512Courtesy of SUBARU OF AMERICA, INC.

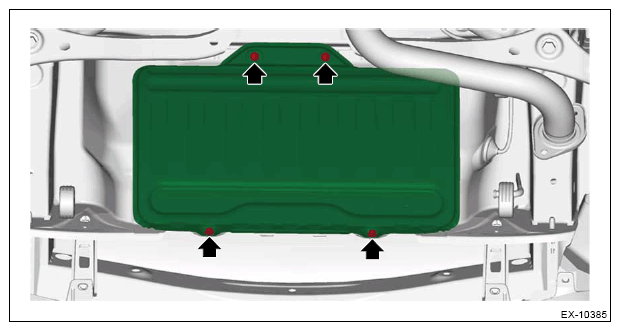

    • Crosstrek hybrid model
      G13230513Courtesy of SUBARU OF AMERICA, INC.
