Belt Assembly Front Inn
CAUTION:
- Before installation, make sure that the correct part is used.
- Make sure that the seat belt harness is not caught anywhere. Wrong harness rooting may cause the harness short from pinch.
- Do not forget the spring wave washer, when installing the belt assembly front INN.
- If the passenger's seat is removed, be sure to perform [Rezero] for the occupant detection system after installing the seat to the vehicle.
- Install the belt assembly front INN.

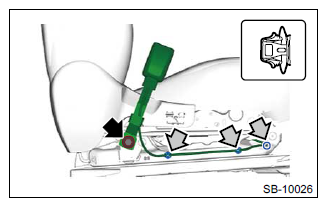

- Install the wave washer, belt assembly front INN and nut in order and then tighten the nut.
Tightening torque:
38 N.m (3.9 kgf-m, 28.0 ft-lb)
- Locate the seat belt harness and retain it with a harness clip.
NOTE: For details about harness routing behind the seat, refer to "SEATS" information. Ref. to SEATS>Front Seat>ASSEMBLY . - Install the wave washer, belt assembly front INN and nut in order and then tighten the nut.
- Install the seat assembly to the body. Ref. to SEATS>Front Seat>INSTALLATION .
- Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
- If the passenger's seat is removed, perform [Rezero] in the occupant detection system. Ref. to OCCUPANT DETECTION (DIAGNOSTICS)>REZERO .
