Oil Temperature Sensor: Installation

CAUTION: If the differential gear oil is spilt over exhaust pipe, etc., wipe it off to avoid emitting smoke or causing a fire.

Using a new gasket, install the oil temperature sensor.
Tightening torque:

16 N.m (1.6 kgf-m, 11.8 ft-lb)

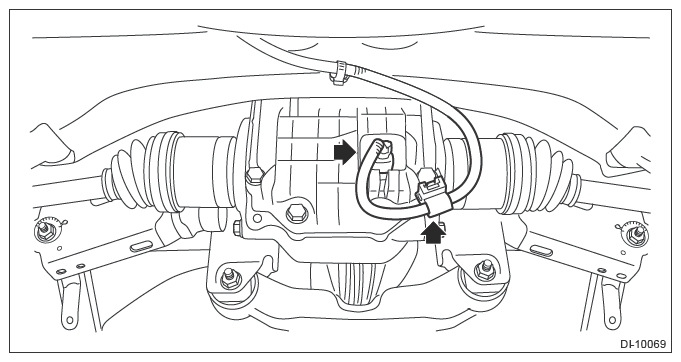

Connect the connector to the oil temperature sensor and install the clip.

Courtesy of SUBARU OF AMERICA, INC.
Fill differential gear oil. Ref. to DIFFERENTIALS>Differential Gear Oil>REPLACEMENT .
Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
