Auto Headlight Beam Leveler Control Module: Removal

  1. Disconnect the ground terminal from battery sensor, Ref. to REPAIR CONTENTS>NOTE>BATTERY .

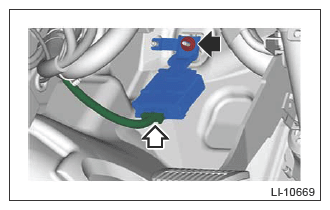

  2. Remove the auto headlight beam leveler control module.
    1. Disconnect the connector.
    2. Remove the nuts, and remove the auto headlight beam leveler control module.
      G13200867Courtesy of SUBARU OF AMERICA, INC.
