Solenoid Unit

Remove the select lever. Ref. to CONTROL SYSTEMS>Select Lever>REMOVAL .
Remove the connector.

Courtesy of SUBARU OF AMERICA, INC.

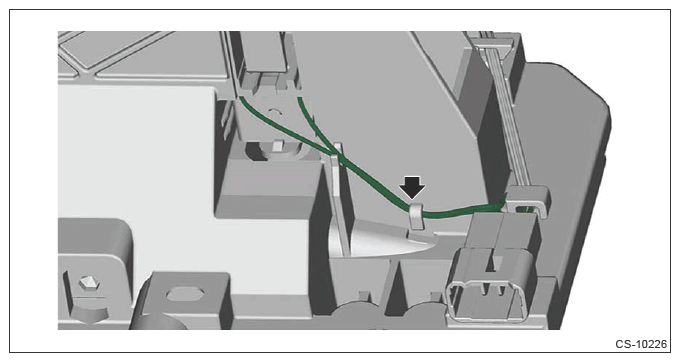

Remove the harness.

Courtesy of SUBARU OF AMERICA, INC.

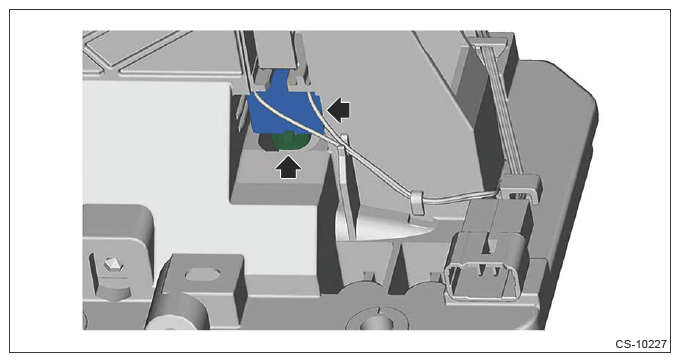

Push down the claw to remove the solenoid unit.

Courtesy of SUBARU OF AMERICA, INC.

Pull out the terminal of the solenoid unit using KTC connector terminal tool (part number: ECC-1T).

NOTE: A flat tip precision screwdriver with a tip width of 1.3 mm (0.05 in) or less can also be used.

Courtesy of SUBARU OF AMERICA, INC.

Terminal No.	Wiring color
3	Blue
4	Black
