Air Breather Hose: Removal

  1. Remove the intercooler. Ref. to INTAKE (INDUCTION) (H4DOTC)>Intercooler>REMOVAL .
  2. Remove the air breather hose.
    G13200111Courtesy of SUBARU OF AMERICA, INC.

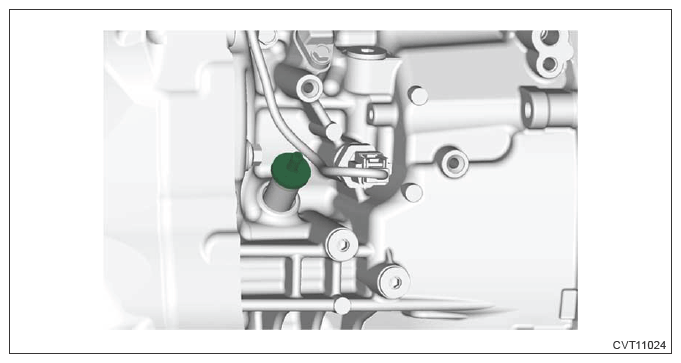

  3. Remove the oil charge pipe cap.
    NOTE: Perform this procedure only when required.
    G13200112Courtesy of SUBARU OF AMERICA, INC.

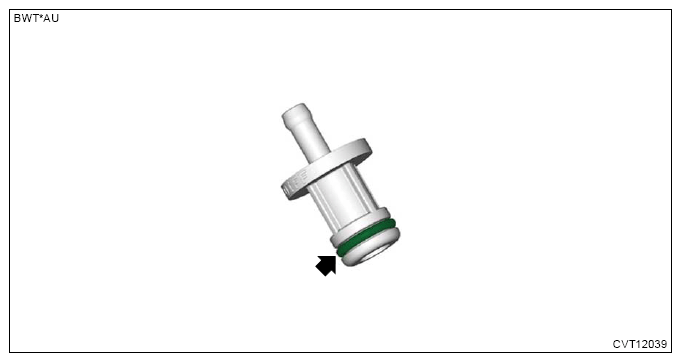

  4. Remove the O-rings.
    G13622044Courtesy of SUBARU OF AMERICA, INC.
