Arm Front Rear Bushing Assembly

  1. Remove the arm front rear bushing assembly.
  1. Put alignment marks on the arm COMPL front and arm front rear bushing assembly.

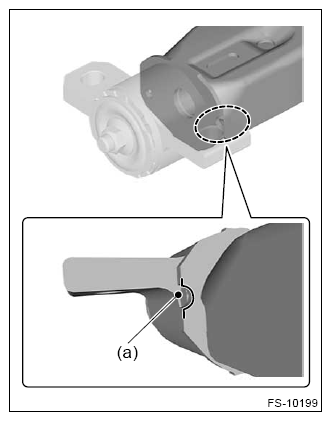

    • Arm COMPL front replacement: put an alignment mark (a) from the cutout portion of the arm COMPL front to the arm front rear bushing assembly.
      G13199328Courtesy of SUBARU OF AMERICA, INC.

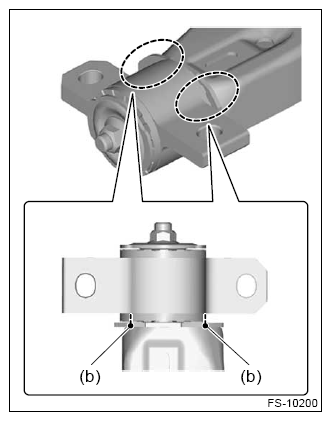

    • Arm front rear bushing assembly replacement: put an alignment mark (b) on the arm COMPL front located on an imaginary line extending from the rib portion of the arm front rear bushing assembly.
    G13199329Courtesy of SUBARU OF AMERICA, INC.

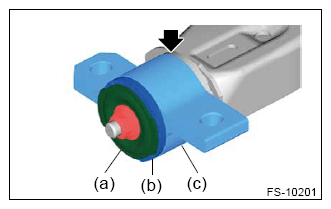

  2. Remove the self-locking nut, plate arm front (a) and the stopper rubber arm (b), and remove the arm front rear busing assembly (c).
G13199330Courtesy of SUBARU OF AMERICA, INC.
