Special Tool

Subaru Select Monitor

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
Courtesy of SUBARU OF AMERICA, INC.	-	SUBARU SELECT MONITOR 4	Used for setting of each function and troubleshooting for electrical system. NOTE: For detailed operation procedures, refer to "Help" of application.

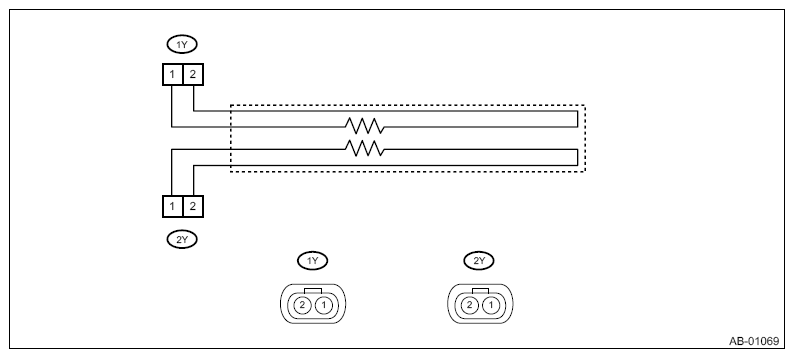

TEST HARNESS Y

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
Courtesy of SUBARU OF AMERICA, INC.	98299AG040	TEST HARNESS Y	Used for troubleshooting seat belt buckle switch.

G13872829

Courtesy of SUBARU OF AMERICA, INC.

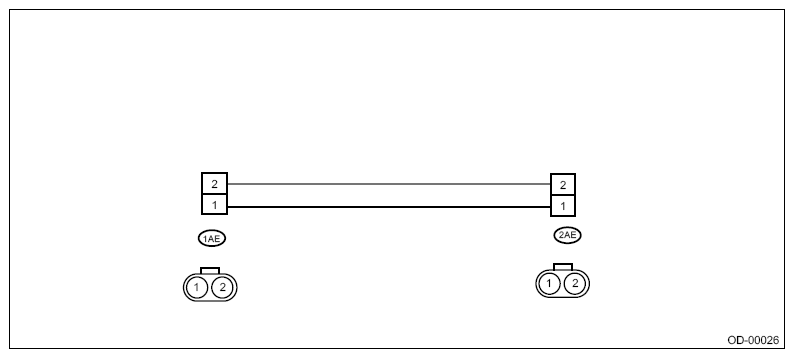

TEST HARNESS AE

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
Courtesy of SUBARU OF AMERICA, INC.	98299XA030	TEST HARNESS AE	TEST HARNESS Y adapter harness. Used for troubleshooting seat belt buckle switch.

G13872831

Courtesy of SUBARU OF AMERICA, INC.

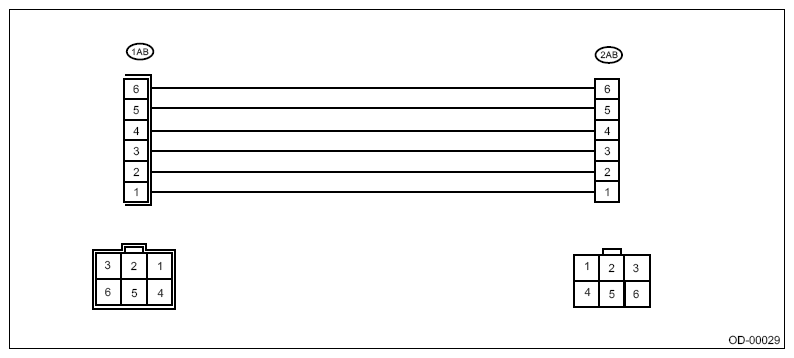

TEST HARNESS AB

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
Courtesy of SUBARU OF AMERICA, INC.	98299XA000	TEST HARNESS AB	Used when measuring voltage and resistance of occupant detection system.

G13872833

Courtesy of SUBARU OF AMERICA, INC.

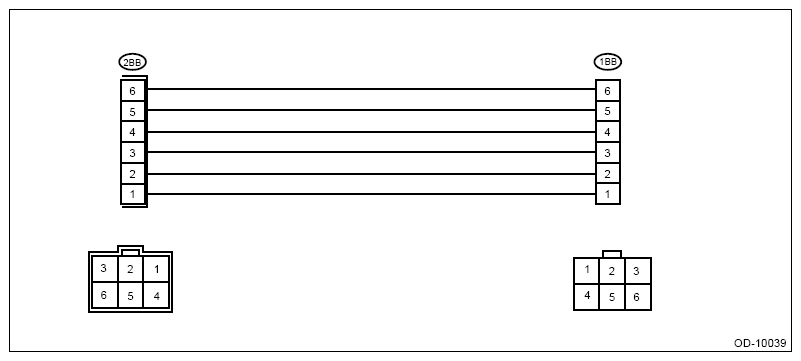

TEST HARNESS BB

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
Courtesy of SUBARU OF AMERICA, INC.	98299FL020	TEST HARNESS BB	Used when measuring voltage and resistance of occupant detection system.

G13872835

Courtesy of SUBARU OF AMERICA, INC.

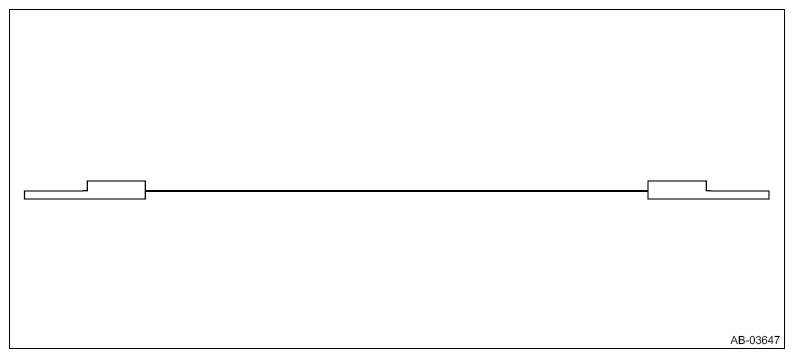

TEST HARNESS BC

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
Courtesy of SUBARU OF AMERICA, INC.	98299FL030	TEST HARNESS BC	Used when measuring voltage and resistance of occupant detection system. Two sets may be required.

G13872837

Courtesy of SUBARU OF AMERICA, INC.

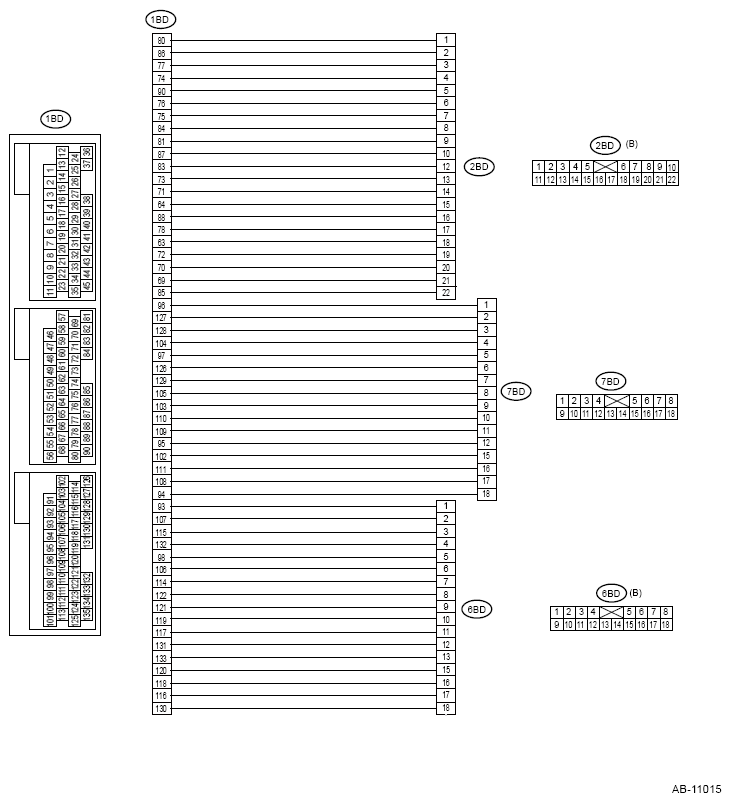

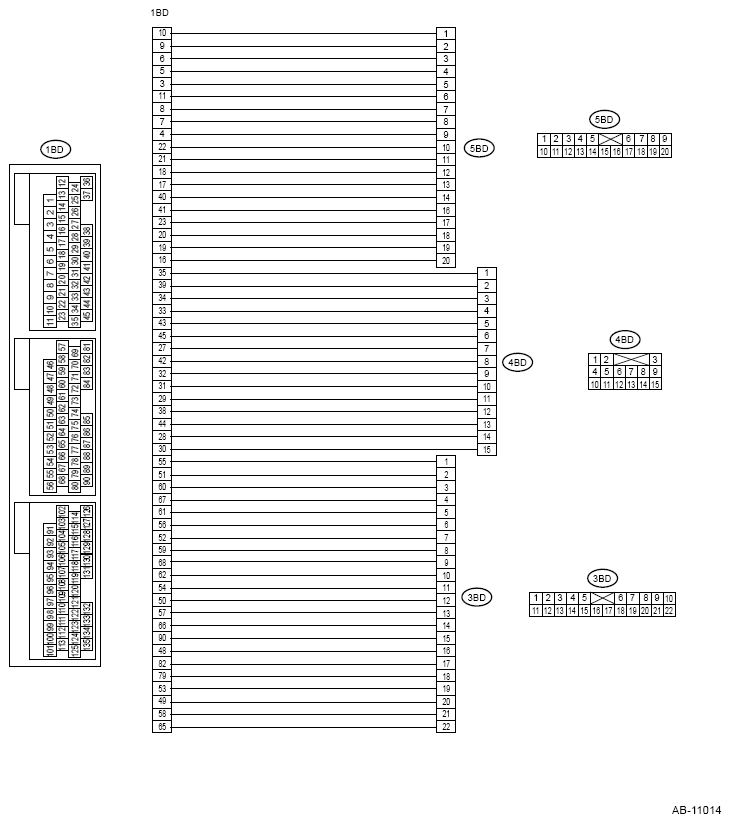

TEST HARNESS BD

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
Courtesy of SUBARU OF AMERICA, INC.	98299XC000	TEST HARNESS BD	Used when measuring voltage and resistance of airbag control module.

G13872839

Courtesy of SUBARU OF AMERICA, INC.

G13872840

Courtesy of SUBARU OF AMERICA, INC.

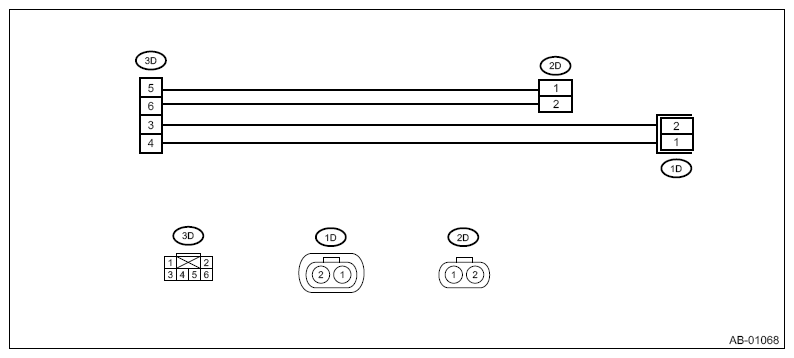

TEST HARNESS D

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
Courtesy of SUBARU OF AMERICA, INC.	98299AG060	TEST HARNESS D	Used for troubleshooting seat belt buckle switch.

G13872842

Courtesy of SUBARU OF AMERICA, INC.
