Part Change Information For The Multi-Function Display (MFD) (07-190-21)
Publication date: 2021-02-17Reference number: 07-190-21
PART CHANGE INFORMATION FOR THE MULTI-FUNCTION DISPLAY (MFD)
TECHNICAL SERVICE BULLETIN
| SUBARU: | 2020 Impreza; 2021 Crosstrek; 2020 Crosstrek Hybrid (PHEV); 2020-21 Forester; 2020-21 Ascent |
APPLICABILITY
2020MY Impreza
2021MY Crosstrek
2020MY Crosstrek Hybrid (PHEV)
2020-21MY Forester
2020-21MY Ascent
INTRODUCTION

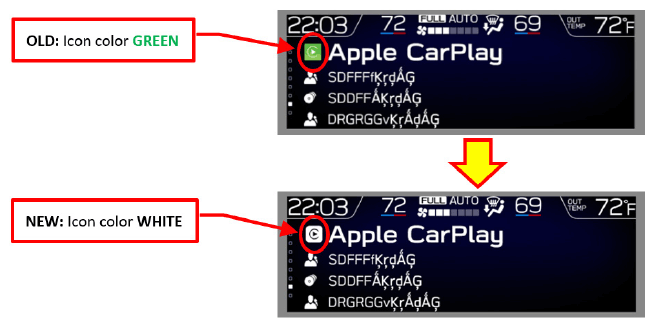

This Service Information Bulletin announces a change made to the MFD software to keep the affected units listed below compliant with Apple® CarPlay® certification. The CarPlay icon color in the new MFD units has been changed from green to white as shown below.
PRODUCTION CHANGE INFORMATION
This bulletin will be revised with the starting VIN information when it becomes available.
PART INFORMATION
REMINDER: Always order the most up-to-date replacement parts based on the specific VIN being repaired.
| Description | Part Number | Application |
|---|---|---|
| MULTI DISPLAY ASSEMBLY | 85261FL711 | 2020MY Impreza |
| 85261FL741 | ||
| 85261FL901 | 2020MY Crosstrek PHEV | |
| 85263FL110 | 2021MY Crosstrek | |
| 85263FL140 | ||
| 85261SJ311 | 2020-21MY Forester | |
| 85261XC211 | 2020MY Ascent | |
| 85261XC311 | 2021MY Ascent |
SERVICE PROCEDURE/INFORMATION
REMINDER: Customer satisfaction and retention starts with performing quality repairs.
The service procedures for MFD replacement remain unchanged. Always refer to STIS and review the full requirements of the repair being performed. The Service Manual procedures contain information critical to performing an effective repair the first time, every time. This includes but is not limited to important SAFETY precautions, proper inspection criteria, necessary special tools, required processes and related one-time-use parts needed for a complete and lasting repair.
WARRANTY/CLAIM INFORMATION
For vehicles within the Basic New Car Limited Warranty period or covered by an active Subaru Added Security Classic or Gold plan, this repair may be submitted using the following claim information:
| Labor Description | Labor Operation # | Model | Labor Time | Fail Code |
|---|---|---|---|---|
| Multi-Function Display R&R | B067-351 | Impreza | 0.3 | ZLK-99 |
| Crosstrek | 0.4 | |||
| Crosstrek PHEV | ||||
| Forester | 0.3 | |||
| Ascent | 0.3 |
IMPORTANT REMINDERS:
- SOA strongly discourages the printing and/or local storage of service information as previously released information and electronic publications may be updated at any time.
- Always check for any open recalls or campaigns anytime a vehicle is in for servicing.
- Always refer to STIS for the latest service information before performing any repairs.
