Crank Pulley

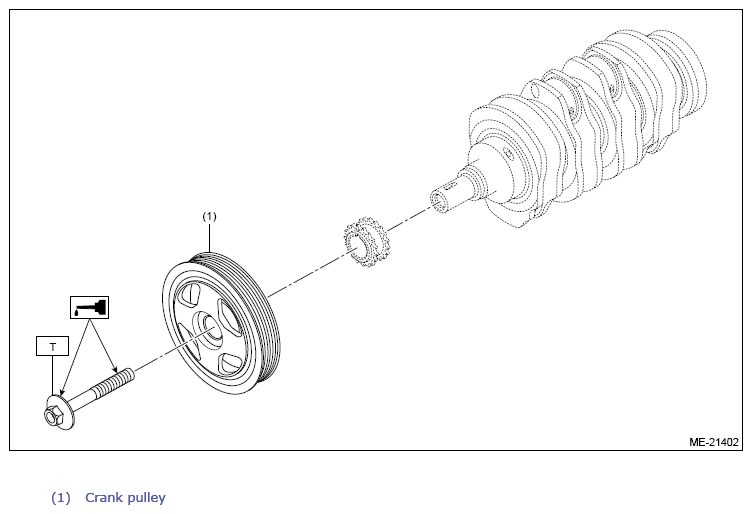

Fig 1: Crank Pulley Components

G13862408

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: Ref. to MECHANICAL (H4DOTC)>Crank Pulley>CRANK PULLEY .
