Crank Pulley: Removal

NOTE: When replacing a single part, perform the work with the engine assembly installed to body.
  1. When working on the vehicle
    NOTE: When working on the vehicle, perform the following steps also.
    1. Remove the air intake duct. Ref. to INTAKE (INDUCTION) (H4DOTC)>Air Intake Duct>REMOVAL
  2. Remove the V-belts. Ref. to MECHANICAL (H4DOTC)>V-belt>REMOVAL>V-BELT .
  3. Use the ST1 and ST2 to lock the crank pulley, remove the crank pulley bolt.
    NOTE: To prevent damaging ST1, attach the ST2 onto the ST1 as shown in the figure.
    G08316897Courtesy of SUBARU OF AMERICA, INC.

    Preparation tool:

    ST1: PULLEY WRENCH (18355AA000)

    ST2: PULLEY WRENCH PIN SET (18334AA000)

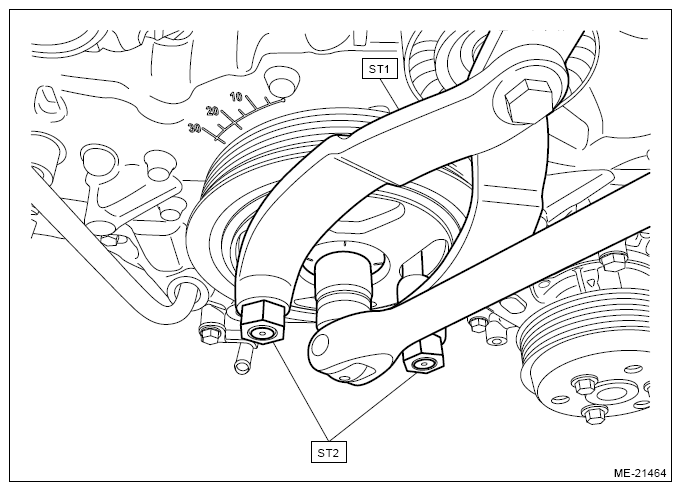

    G13198734Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the crank pulley.
  5. Remove the front oil seal from the chain cover.

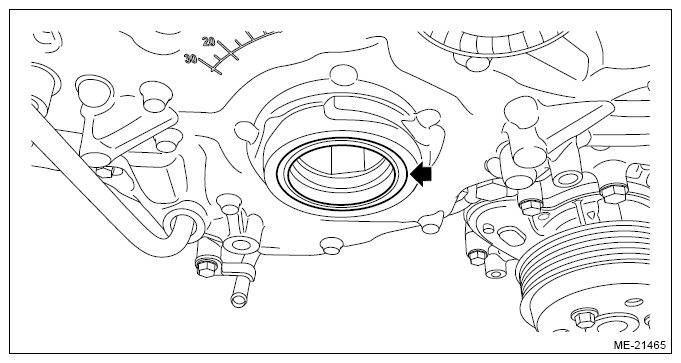

    G13198735Courtesy of SUBARU OF AMERICA, INC.
