Cam Carrier: Inspection

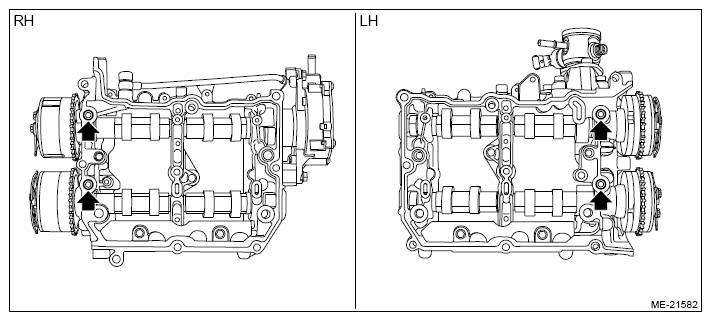

Visually check the cam carrier filter, and if clogging is found, replace it with a new part.

Courtesy of SUBARU OF AMERICA, INC.
Check the camshaft journals for damage and wear. Replace the camshaft if faulty.
Check the cam face condition of camshaft, and remove the minor faults by grinding with oil stone. Replace the camshaft if uneven wear is found.
Using a dial gauge, check the camshaft bend. If it exceeds the limit, replace the camshaft.
NOTE: Measurement should be performed at a temperature of 20°C (68°F).

Camshaft bend:

Limit

0.020 mm (0.0008 in)

Courtesy of SUBARU OF AMERICA, INC.
Check the cam lobe height "H" and cam base circle diameter "A" of camshaft as shown in the figure, using micrometer. If it is not within the standard, replace the camshaft.
NOTE:
- Measurement should be performed at a temperature of 20°C (68°F) .
- Perform measurement of cam lobe height for fuel pump drive section at two points .
Camshaft cam lobe overall height H:

Intake

Valve drive section

Standard

40.34 - 40.44 mm (1.5882 - 1.5921 in)

Fuel pump drive section

Standard

41.95 - 42.05 mm (1.6516 - 1.6555 in)

Exhaust

Standard

40.20 - 40.30 mm (1.5827 - 1.5866 in)

Camshaft cam base circle diameter A:

Standard

34.0 mm (1.3386 in)

Courtesy of SUBARU OF AMERICA, INC.
Check the camshaft journal outer diameter using micrometer. If it is not within the standard, replace the camshaft.
NOTE:
- Measurement should be performed at a temperature of 20°C (68°F) .
- Measure outer diameter of each journal at several points, and read the value of most worn location .
Camshaft journal outer diameter:

Standard

25.946 - 25.963 mm (1.0215 - 1.0222 in)

Courtesy of SUBARU OF AMERICA, INC.
Using a dial gauge, check the thrust clearance of the camshaft. If it is not within the standard or if uneven wear is found, replace each camshaft cap and cam carrier as a set. If necessary replace the camshaft.
NOTE:
- Measurement should be performed at a temperature of 20°C (68°F) .
- Set the dial gauge at end surface of camshaft .
Camshaft thrust clearance:

Standard

0.068 - 0.116 mm (0.0027 - 0.0047 in)

Courtesy of SUBARU OF AMERICA, INC.

Check the oil clearance on the camshaft using a plastigauge.

NOTE: Measurement should be performed at a temperature of 20°C (68°F).

Remove the liquid gasket from cam carrier, front camshaft cap, intake rear camshaft cap and exhaust rear camshaft cap.
Clean each camshaft cap and cam carrier journals.
Set the camshaft to the cam carrier.
Place a plastigauge across the camshaft journals of each camshaft and set the camshaft caps.
Tighten the bolts which secure front camshaft cap, intake center camshaft cap, intake rear camshaft cap, exhaust center camshaft cap and exhaust rear camshaft cap in numerical order as shown in the figure.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

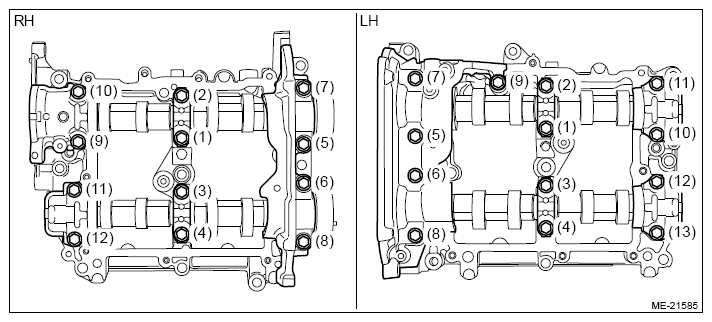

Fig 1: Camshaft Cap Bolts (Tightening Sequence)
Courtesy of SUBARU OF AMERICA, INC.
Loosen the bolts (front camshaft cap, intake center camshaft cap, intake rear camshaft cap, exhaust center camshaft cap and exhaust rear camshaft cap) equally, a little at a time in numerical sequence as shown in the figure, and remove each camshaft cap.

Fig 2: Camshaft Cap Bolts (Loosening Sequence)
Courtesy of SUBARU OF AMERICA, INC.

Determine camshaft oil clearance by matching the widest point of plastigauge on each journal against scale printed on a package of plastigauge. If it is not within the standard, replace each camshaft cap and cam carrier as a set. If necessary replace the camshaft.

Camshaft oil clearance:

Standard

0.037 - 0.072 mm (0.0015 - 0.0028 in)

Courtesy of SUBARU OF AMERICA, INC.

Completely remove the plastigauge.
