Air Cleaner Element: Installation

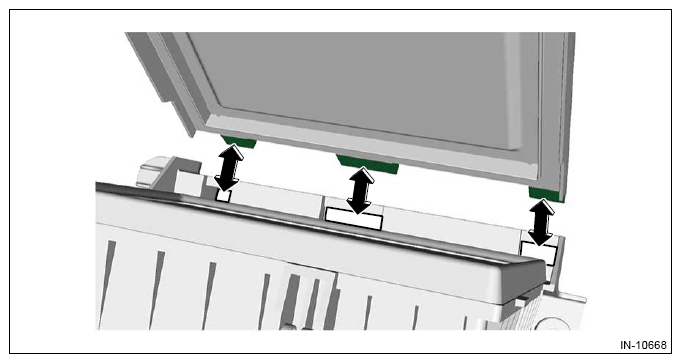

- Set the air cleaner element, align the claws of the air cleaner case (rear) with the holes on the air cleaner case (front), and secure the parts with clips.
CAUTION:
- Be sure to use SUBARU genuine air cleaner element suitable to the engine type. Otherwise the engine performance may decrease .
- Install the air cleaner element so that the printed surface is on the upper side .
- Check that the claws on the bottom of the air cleaner case are securely engaged .
NOTE:
If any foreign matter is found in the air cleaner case, clean it.
