Engine Side

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Drain engine coolant. Ref. to COOLING (H4DOTC)>Engine Coolant>REPLACEMENT>DRAINING OF ENGINE COOLANT .
  3. Remove the center exhaust pipe (front). Ref. to EXHAUST (H4DOTC)>Center Exhaust Pipe>REMOVAL>CENTER EXHAUST PIPE (FRONT) .

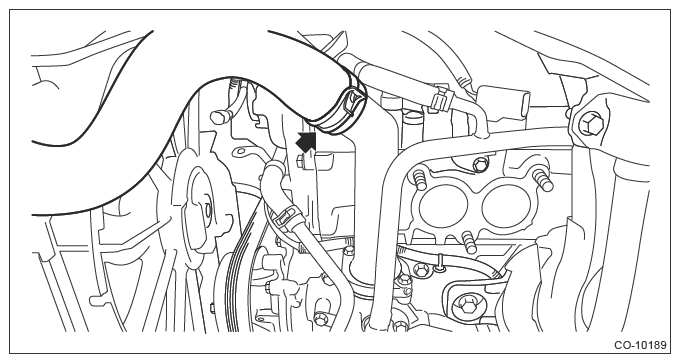

  4. Disconnect radiator outlet hose.
    G13199100Courtesy of SUBARU OF AMERICA, INC.

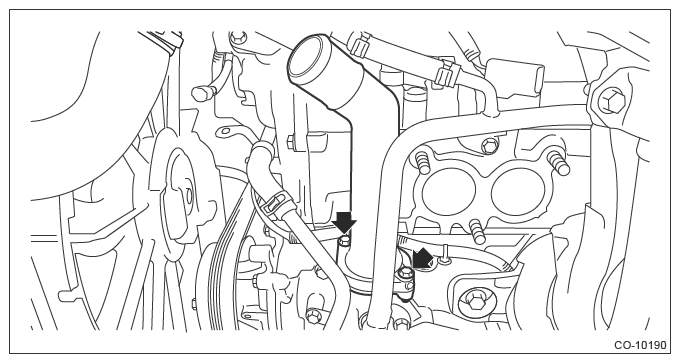

  5. Remove the thermostat cover, and then remove the thermostat.
    G13199101Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the gasket from thermostat.
