Radiator Fan and Fan Motor Assembly: Assembly

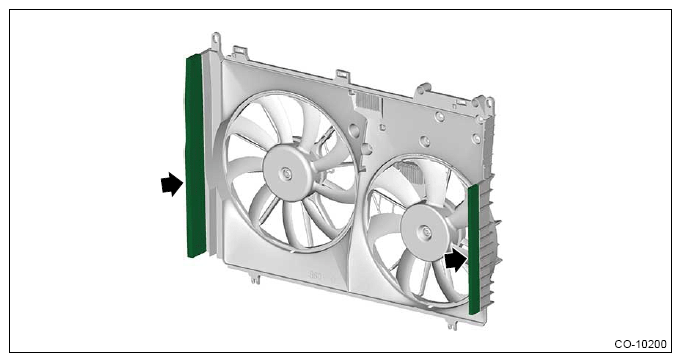

- Install the new radiator fan and fan motor gasket to the position shown in the figure.
- Install the main fan motor and the sub fan motor.
Tightening torque:
3.9 N.m (0.4 kgf-m, 2.9 ft-lb)
- Install the radiator main fan and the radiator sub fan.
Tightening torque:
6.4 N.m (0.7 kgf-m, 4.7 ft-lb)
- Install each radiator fan control module.
Tightening torque:
2.6 N.m (0.3 kgf-m, 1.9 ft-lb)
- Install the radiator fan harness.
