Keyless Access With Push Button Start System: Wiring Diagram

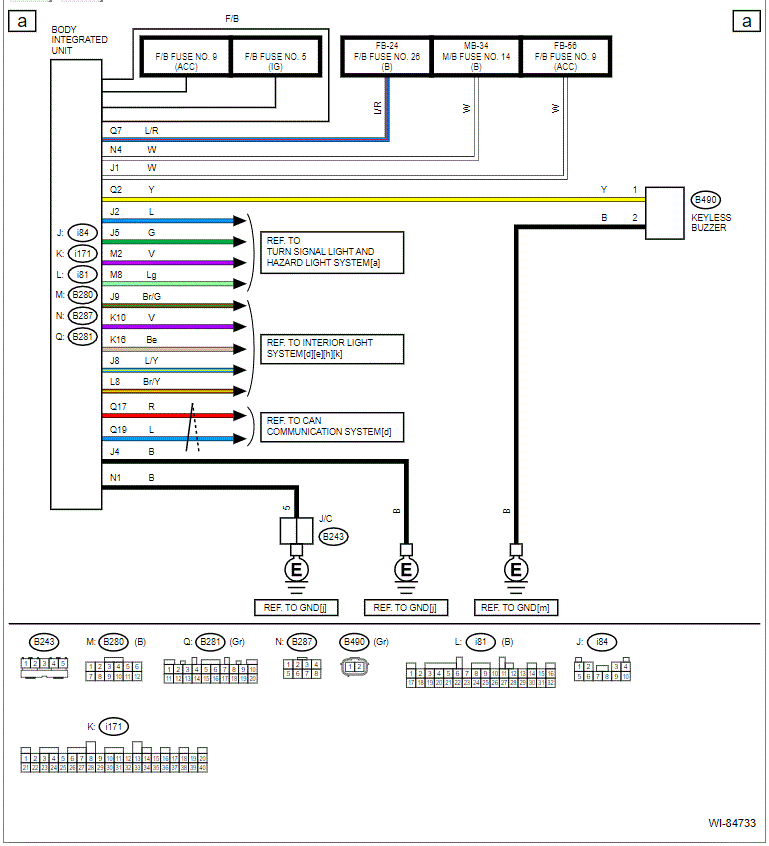

G13865971

Courtesy of SUBARU OF AMERICA, INC.

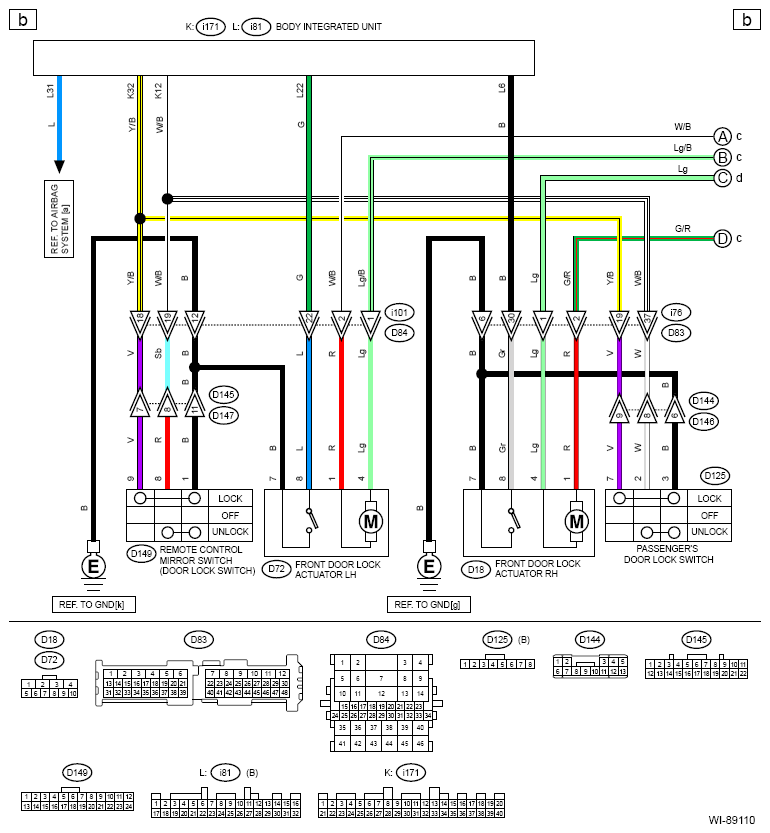

G13865972

Courtesy of SUBARU OF AMERICA, INC.

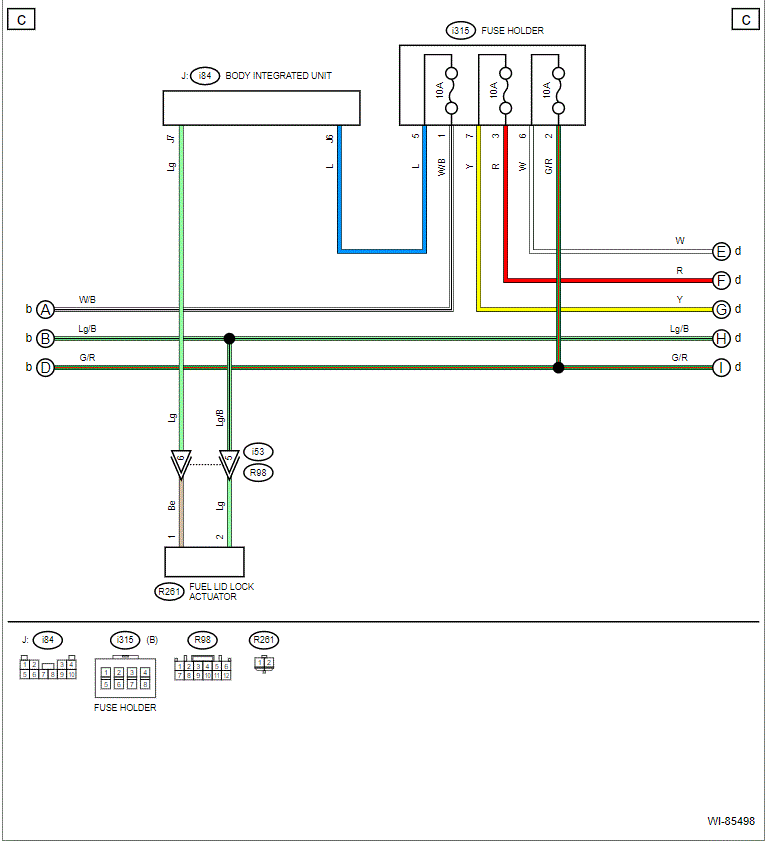

G13865973

Courtesy of SUBARU OF AMERICA, INC.

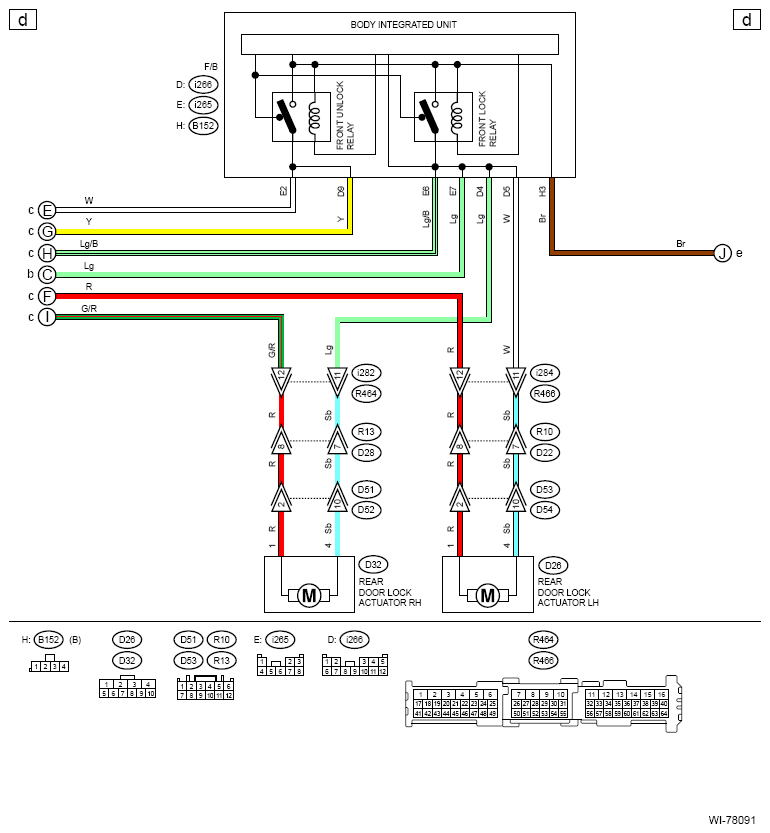

G13865974

Courtesy of SUBARU OF AMERICA, INC.

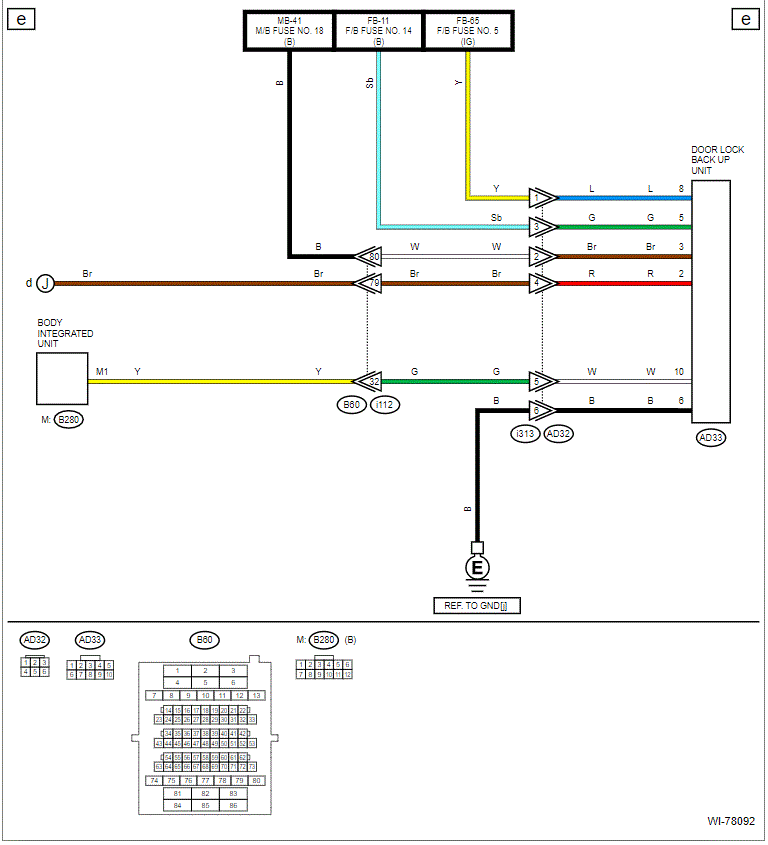

G13865975

Courtesy of SUBARU OF AMERICA, INC.

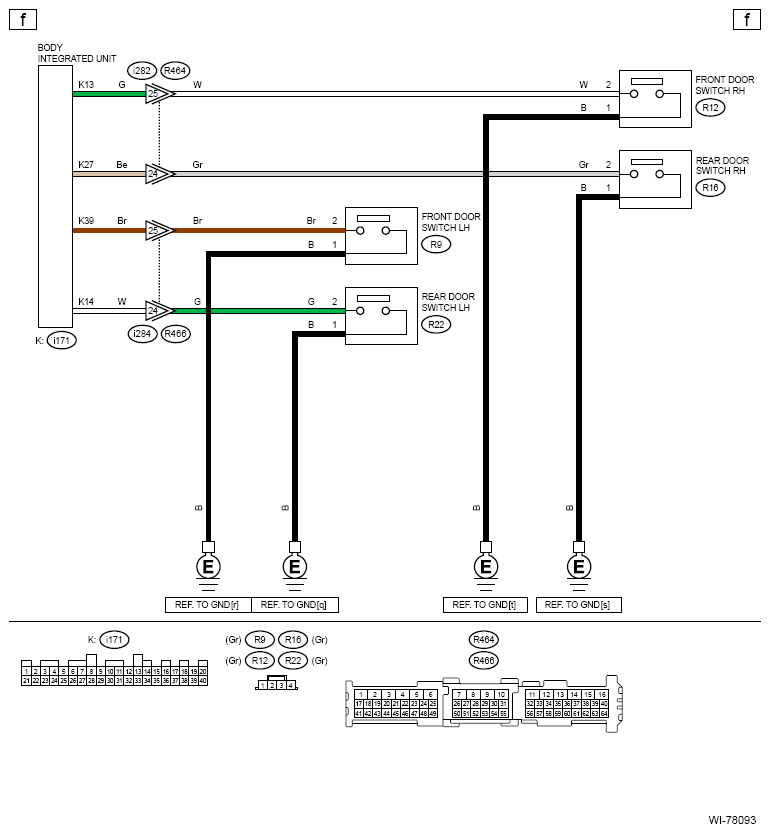

G13865976

Courtesy of SUBARU OF AMERICA, INC.

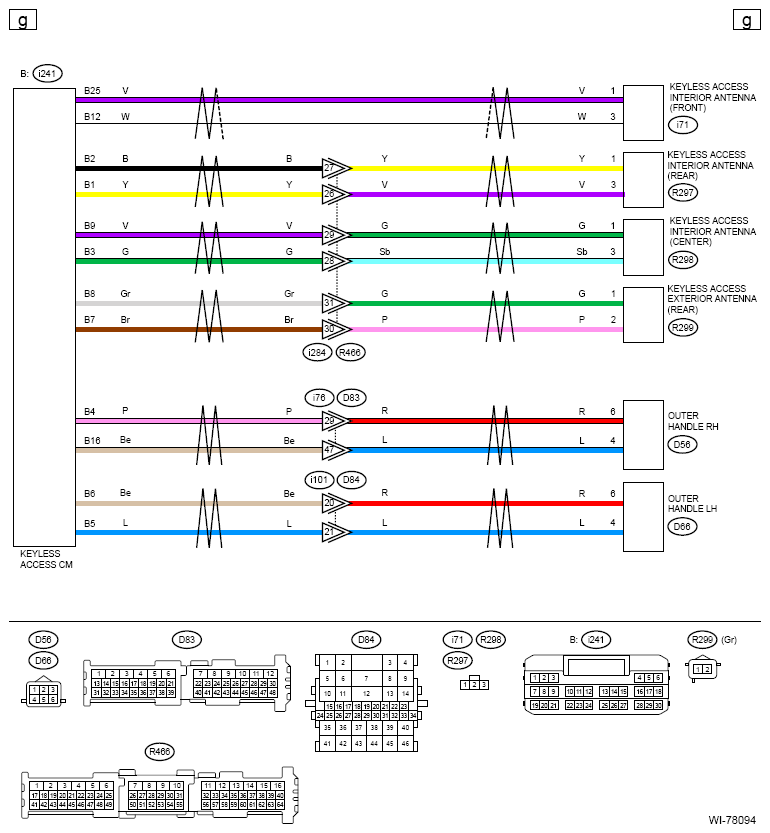

G13865977

Courtesy of SUBARU OF AMERICA, INC.

G13865978

Courtesy of SUBARU OF AMERICA, INC.

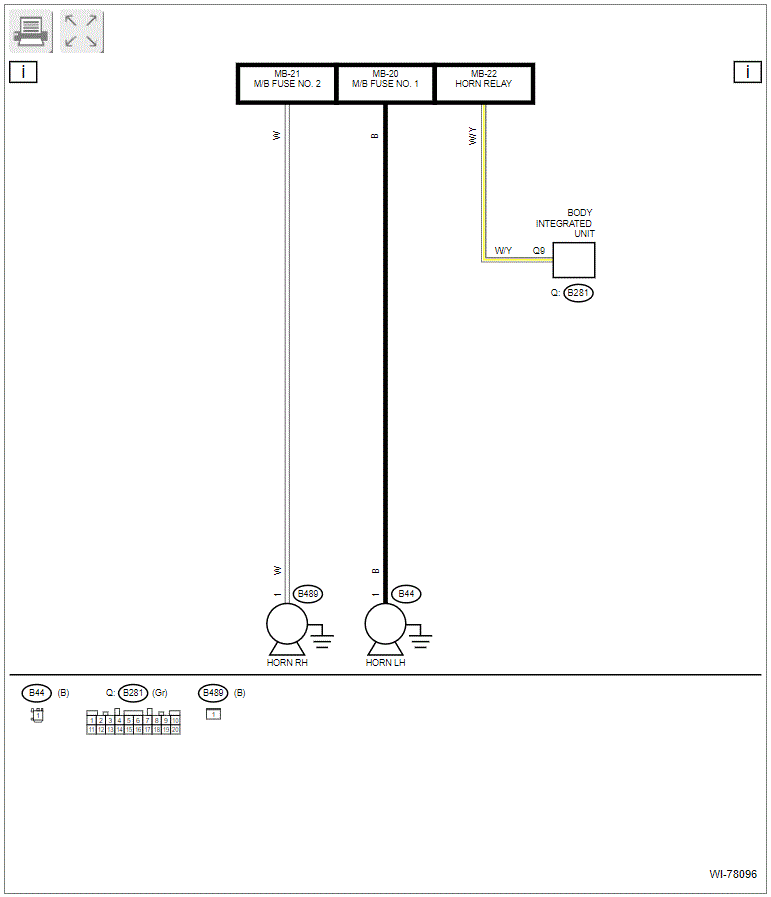

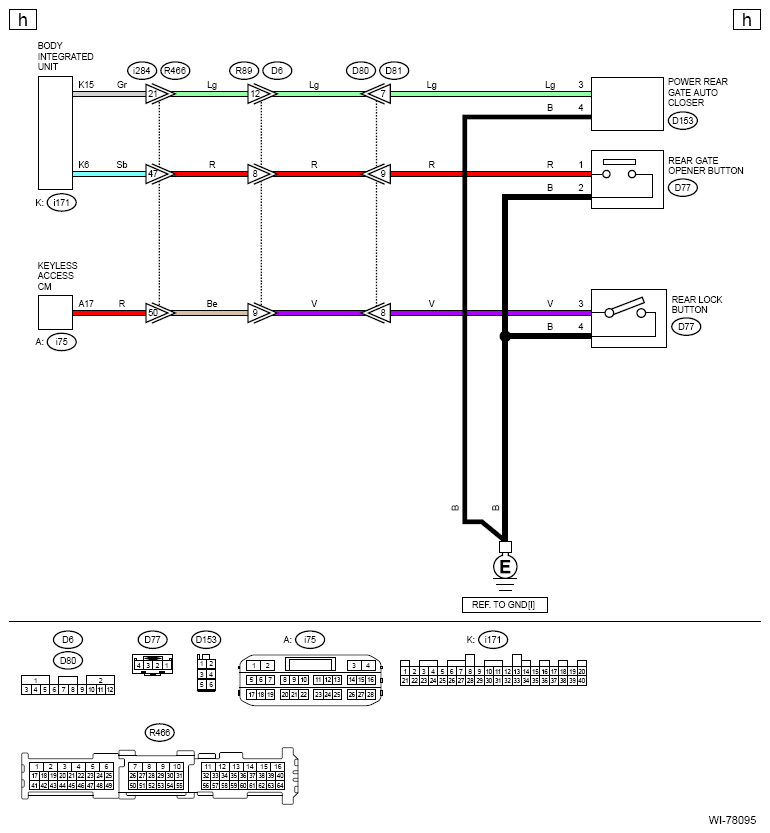

G13865979

Courtesy of SUBARU OF AMERICA, INC.

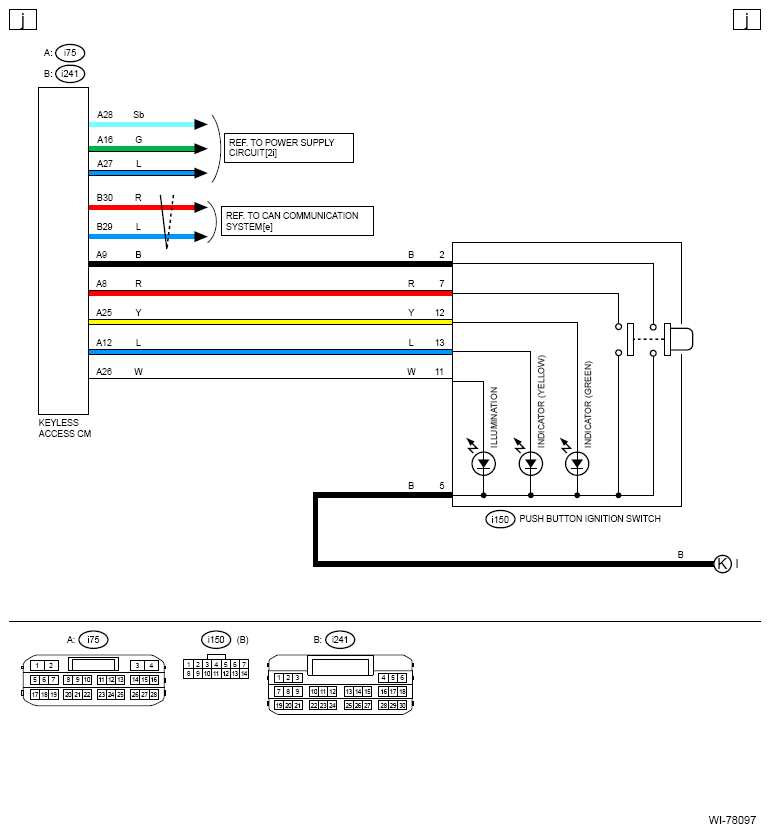

G13865980

Courtesy of SUBARU OF AMERICA, INC.

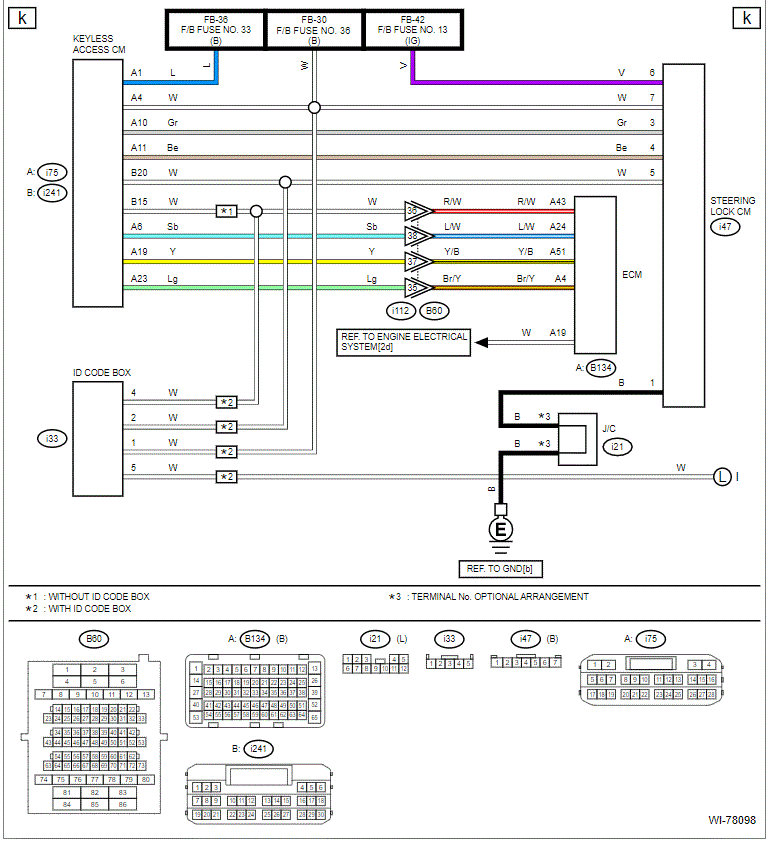

G13865981

Courtesy of SUBARU OF AMERICA, INC.

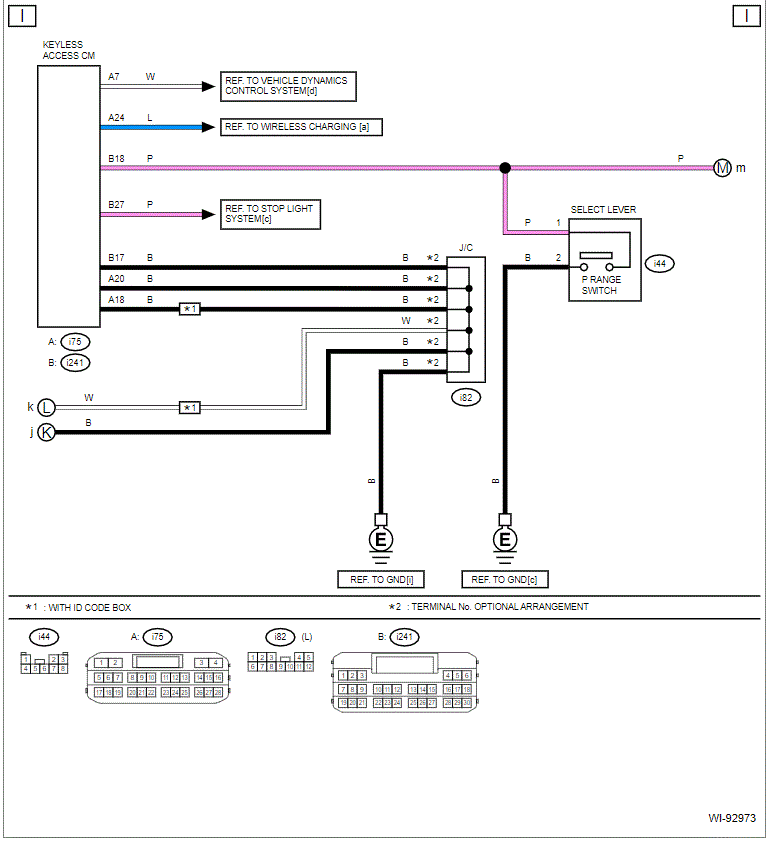

G13865982

Courtesy of SUBARU OF AMERICA, INC.

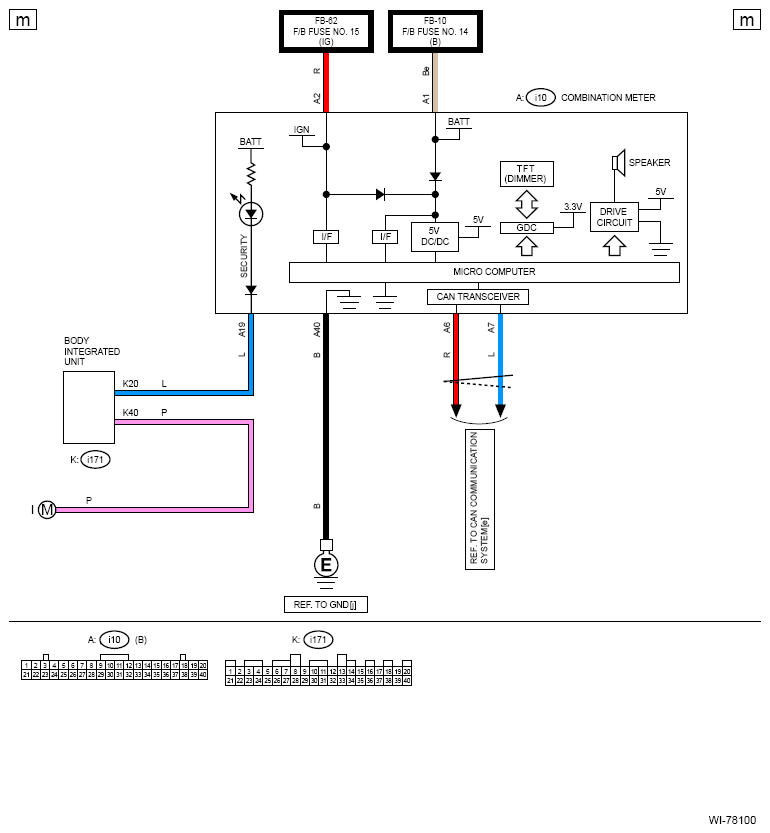

G13865983

Courtesy of SUBARU OF AMERICA, INC.
