Parking Brake Switch: Removal

  1. Set the wheel stoppers to tires.
  2. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
    NOTE: Shift the select lever into "N" before disconnecting the ground terminal from the battery sensor.
  3. Remove the cover assembly front. Ref. to EXTERIOR/INTERIOR TRIM>Console Box>REMOVAL .

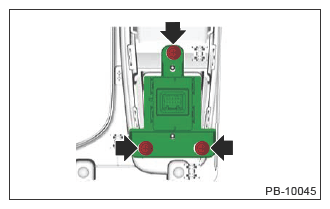

  4. Remove the screws, and remove the switch assembly hand brake.
    G13199808Courtesy of SUBARU OF AMERICA, INC.
