Sunroof System: Sunshade: Installation

Install the shade assembly.

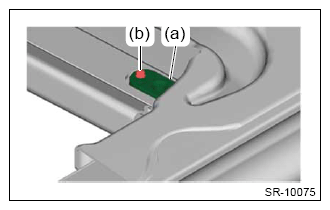

Insert the shade assembly boss section (b) into the plate (a).

Courtesy of SUBARU OF AMERICA, INC.

Insert the shade assembly (a) into the housing (b).

CAUTION:

Make sure that the lock pin (c) is inserted in the direction that allows you to pull it out downward .
Check that the shade assembly surface has no large undulating part .

Courtesy of SUBARU OF AMERICA, INC.

Insert the shade assembly (a) into the housing (b) while pressing in the center shaft using a flat tip screwdriver.

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
Install the lid assembly rear. Ref. to SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF)>Glass Lid>INSTALLATION>GLASS LID .
