Sunroof Switch: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the stereo camera cover assembly. Ref. to EyeSight>Stereo Camera>REMOVAL .

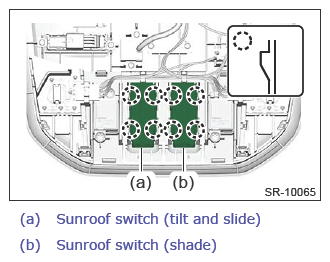

  3. Release the claws (4 places), and then remove the sunroof switch.
G13865342Courtesy of SUBARU OF AMERICA, INC.
