Deflector Assembly

  1. Open the lid assembly front and the shade assembly.
  2. Remove the deflector.
    1. Turn over the weather strip frame assembly, and remove the deflector (a) from the frame assembly front.
      G13201491Courtesy of SUBARU OF AMERICA, INC.

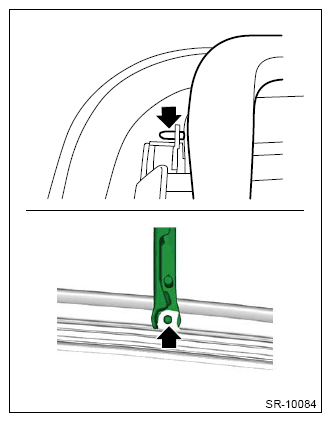

    2. Remove the deflector from the frame assembly front and the rail assembly & cable assembly.
G13201492Courtesy of SUBARU OF AMERICA, INC.
