Front Bumper: Disassembly

  1. Remove the front view camera assembly. (Model with front view camera) Ref. to ENTERTAINMENT & MONITORING>Camera>REMOVAL>FRONT .
  2. Remove the grille assembly front.

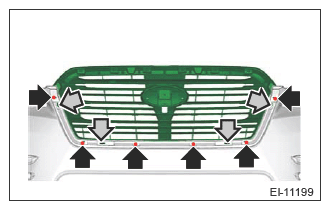

    1. Remove the screws on the back side.
    2. Release the claws, and remove the grille assembly front.
    G13201555Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the fog light assembly front. Ref. to LIGHTING SYSTEM>Front Fog Light Assembly>REMOVAL .

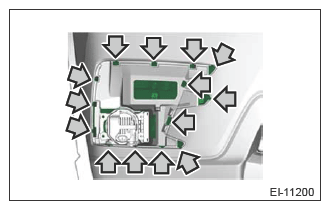

  4. Release the claws, and then remove the cover fog front.
    G13201556Courtesy of SUBARU OF AMERICA, INC.
