Wiper Relay Unit: Removal

CAUTION: Do not remove the bumper face front when removing the wiper relay unit, in order to prevent damaging the claws of the bracket front bumper corner and the bracket front bumper side.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Lift up the vehicle.
  3. Remove the under cover front. Ref. to EXTERIOR/INTERIOR TRIM>Front Under Cover>REMOVAL
  4. Remove the screw and clips, and turn over the mud guard front RH.
  5. Remove the wiper relay unit.
    1. Disconnect connector of the wiper relay unit.
    2. Remove the bolts, and then remove the wiper relay unit.

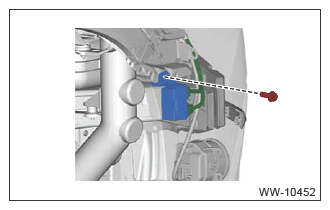

      G13200931Courtesy of SUBARU OF AMERICA, INC.
