Wiper Blade: Disassembly: Front

  1. Hold the blade assembly windshield wiper, and pull the rubber assembly windshield wiper in the direction of arrow (1) to the position (2) shown in the figure.

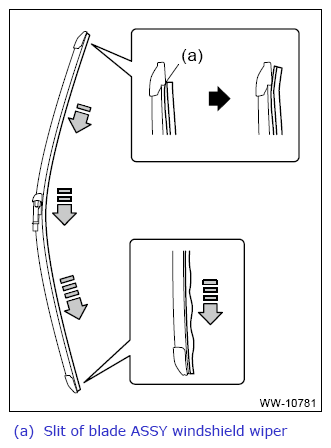

  2. Pull out the rubber assembly windshield wiper from the slit of the blade assembly windshield wiper as shown in (1).
    G11246038Courtesy of SUBARU OF AMERICA, INC.
    NOTE: Shorten the entire rubber assembly windshield wiper in the arrow direction at three or four places.
    G13864735Courtesy of SUBARU OF AMERICA, INC.
