Spot Map Light: Removal

NOTE:
  • The light assembly map is a single unit with the cover assembly stereo camera. If defective, replace the cover assembly stereo camera, Ref. to EyeSight>STEREO CAMERA .
  • Do not remove the cover assembly stereo camera when removing the bulb only.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the map light bulb.
    CAUTION:
    • Use a dry clean cloth so that no grease or water adheres to the glass portion of the bulb.
    • When using a flat tip screwdriver, use an appropriate sized tool for the insertion opening, apply protective tape or cloth around the tool, and be careful not to cause damage.

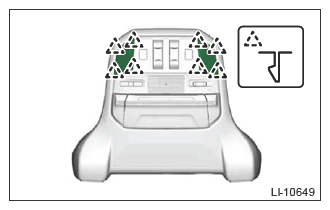

    1. Release the claws and remove the lens.
      G13200835Courtesy of SUBARU OF AMERICA, INC.

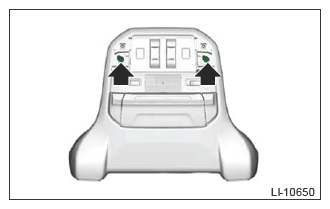

    2. Remove the map light bulb.
      G13200836Courtesy of SUBARU OF AMERICA, INC.
