Back-Up Light Bulb

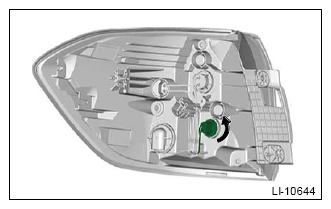

  1. Rotate in the direction of arrow shown in the figure to remove the bulb socket.
  2. Remove the back-up light bulb.
    G13200827Courtesy of SUBARU OF AMERICA, INC.
