Entertainment System: Woofer: Removal

1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .

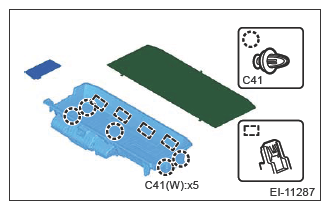

2. Remove the floor mat side, floor mat center, and box sub-trunk assembly.

   Courtesy of SUBARU OF AMERICA, INC.

3. Remove the third-row seats. Ref. to SEATS>THIRD SEAT .
4. Remove the trim panel assembly apron RH. Ref. to EXTERIOR/INTERIOR TRIM>Rear Quarter Trim>REMOVAL .

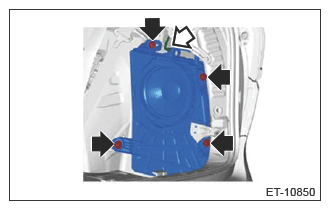

5. Remove the speaker assembly woofer.
   1. Disconnect the connector.
   2. Remove the bolts and remove the speaker assembly woofer.

Courtesy of SUBARU OF AMERICA, INC.
