Front Speaker: Removal: Tweeter

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the grille speaker side.

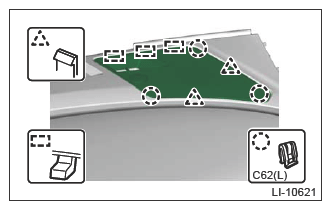

    1. Release the clips, hooks and claws, then detach the grille speaker side.
    G13865697Courtesy of SUBARU OF AMERICA, INC.
    NOTE: For the grille speaker side RH, disconnect the light control sensor connector.
  3. Remove the speaker assembly tweeter.

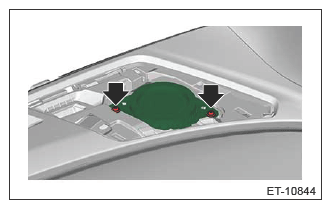

    1. Remove the screws.

      Preparation tool:

      Stubby screwdriver

      G13865698Courtesy of SUBARU OF AMERICA, INC.
    2. Disconnect the connector and remove the speaker assembly tweeter.
