Body Control System (Diagnostics)
>>
General Description
>>

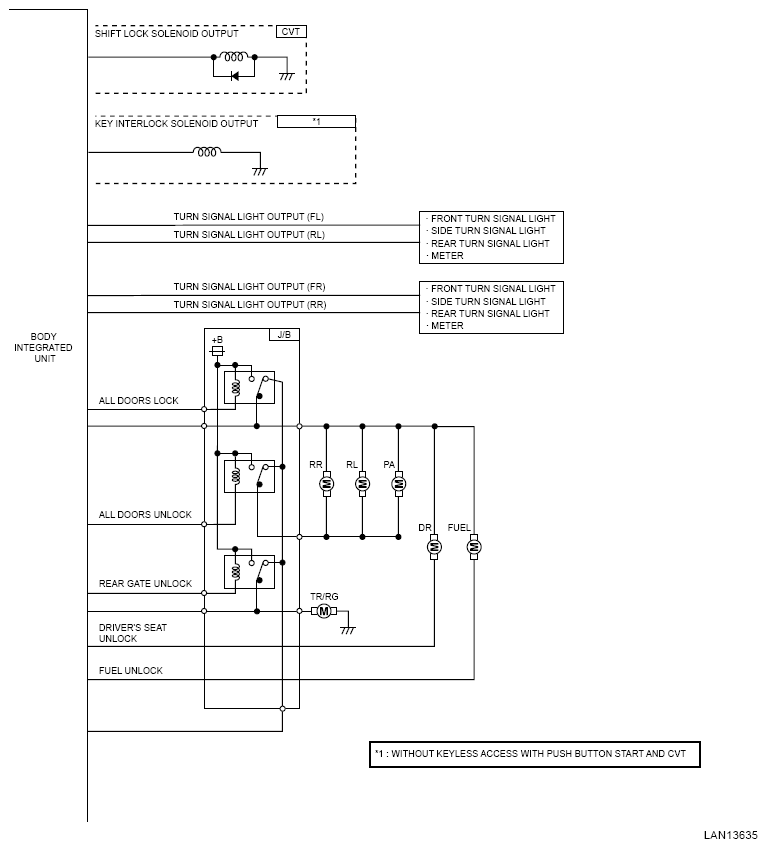

System Block Diagram

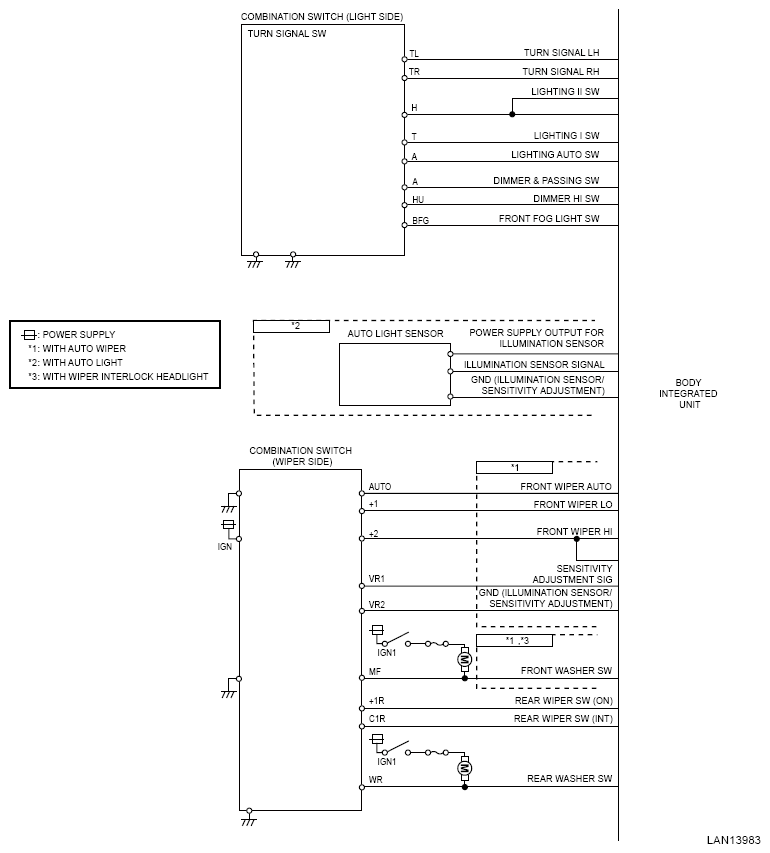

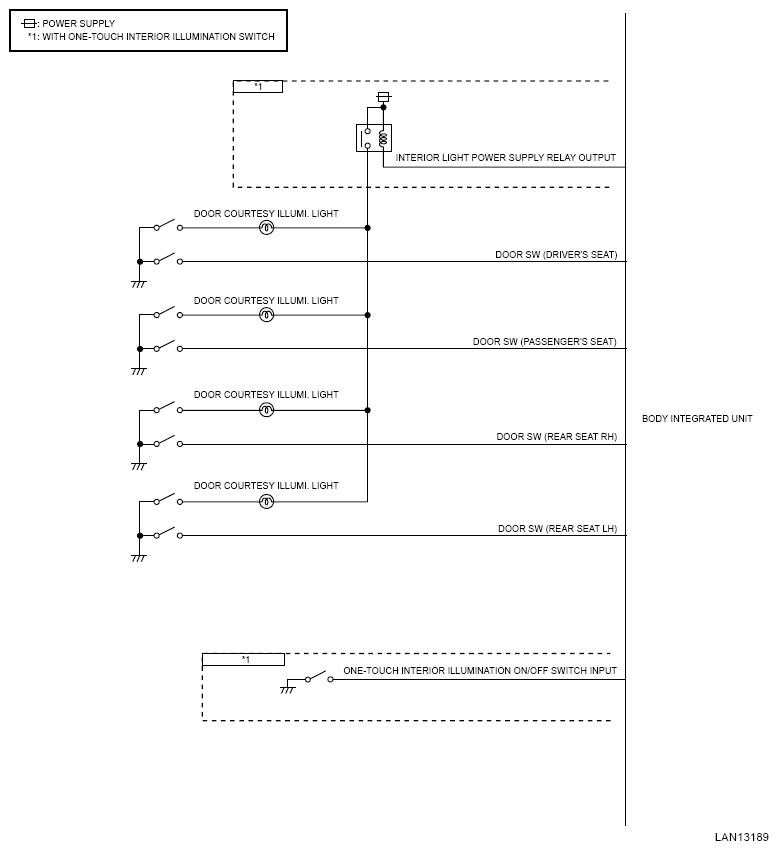

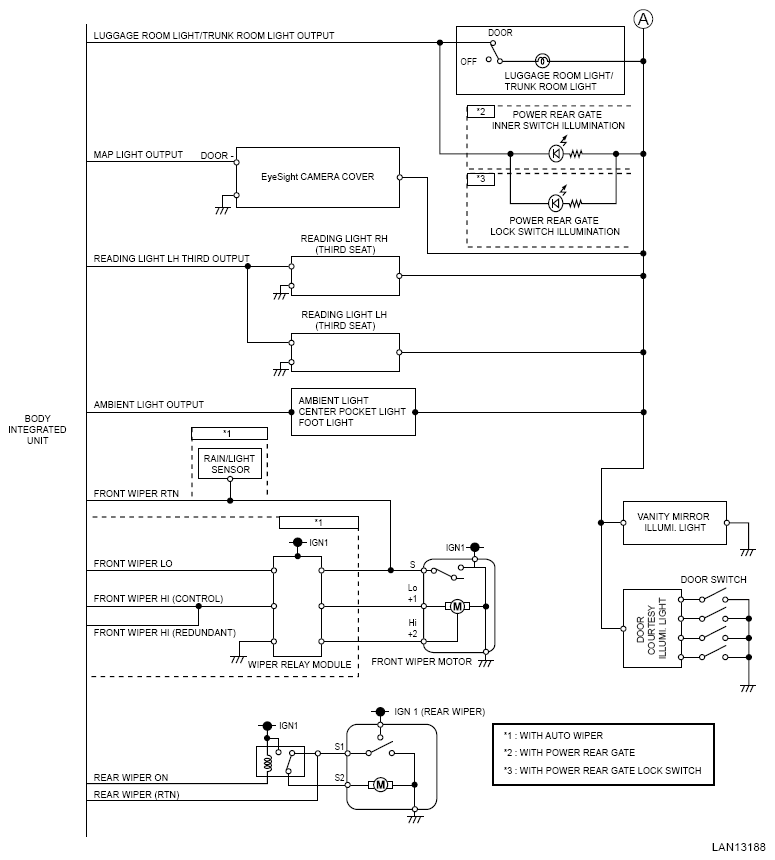

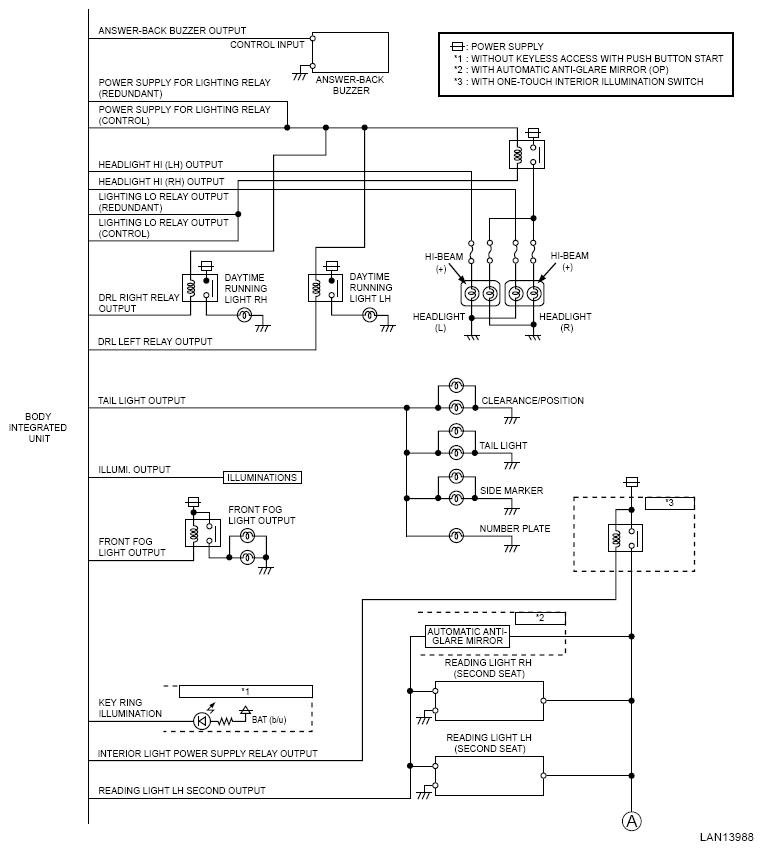

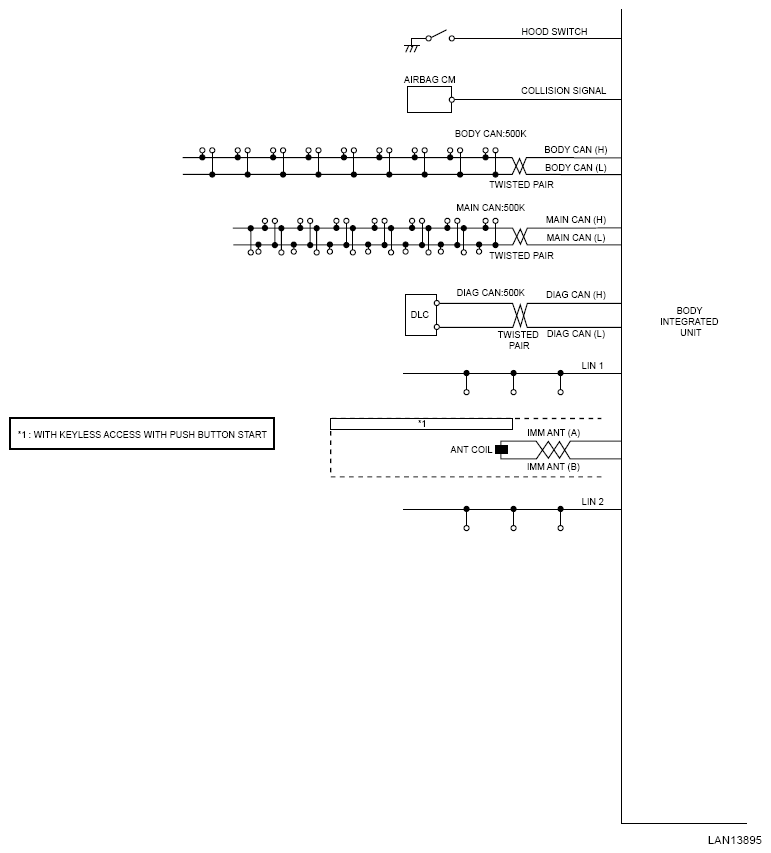

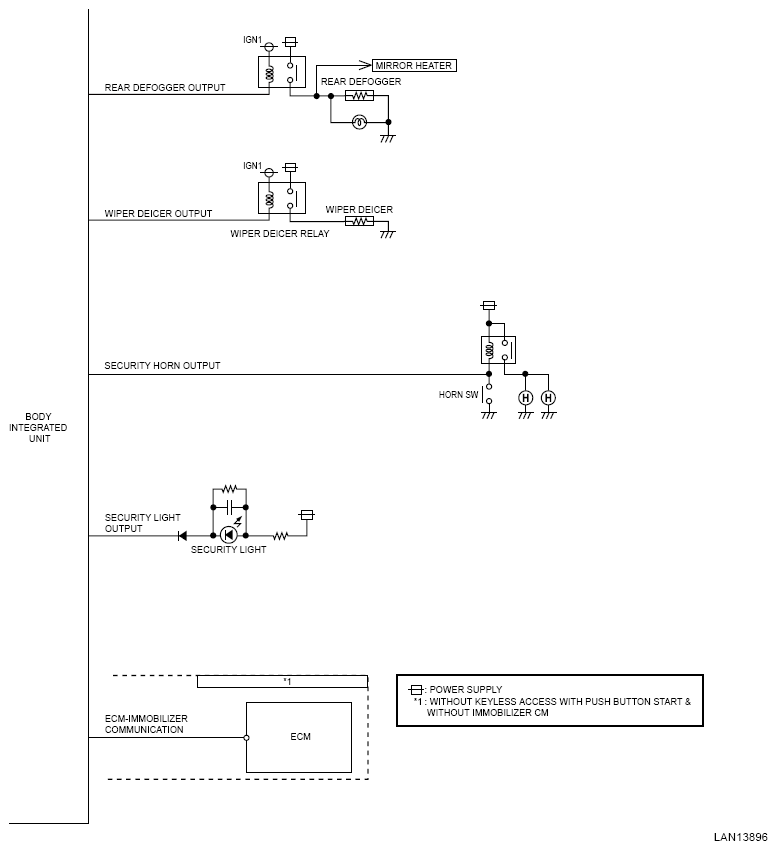

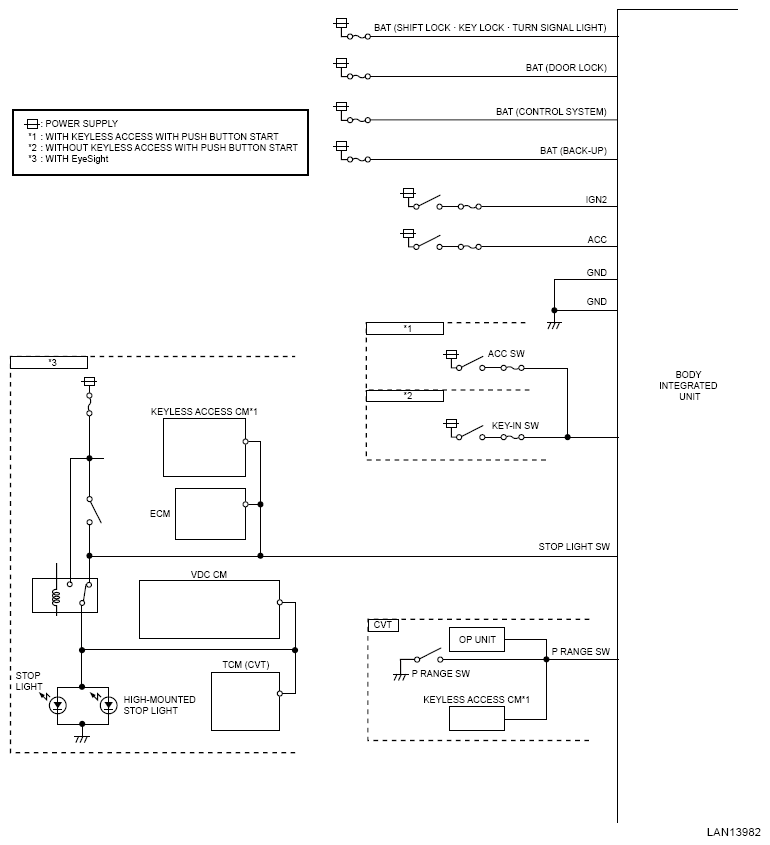

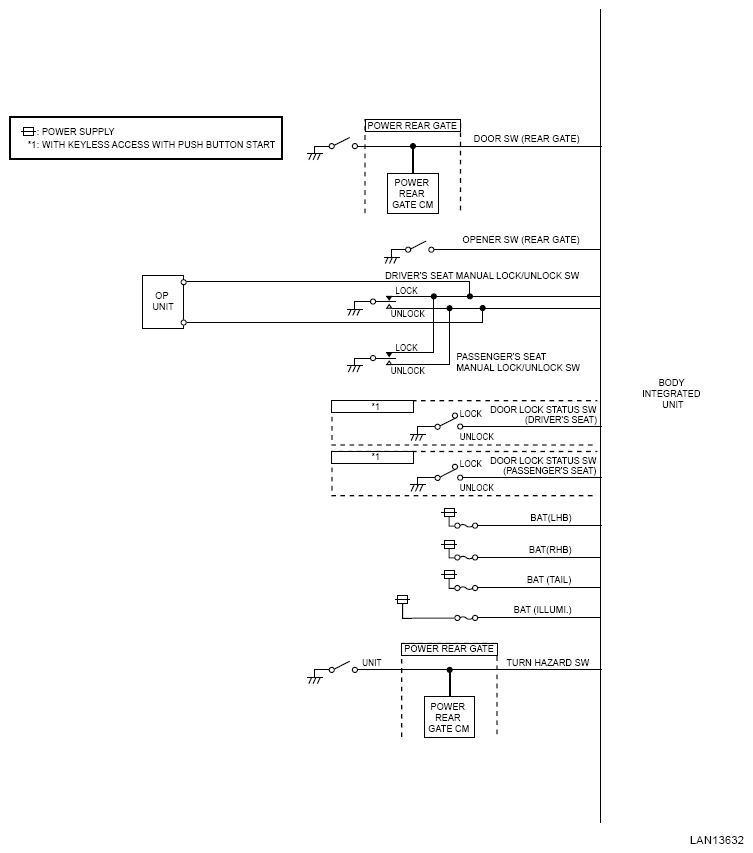

System Block Diagram
