DTC P0965: Pressure Control Solenoid "B" Control Circuit Range/Performance: Notes

DTC detecting condition:

Immediately at fault recognition

Trouble symptom:

• Engine speed increases abruptly, and can not accelerate.
• Excessive slippage is felt.

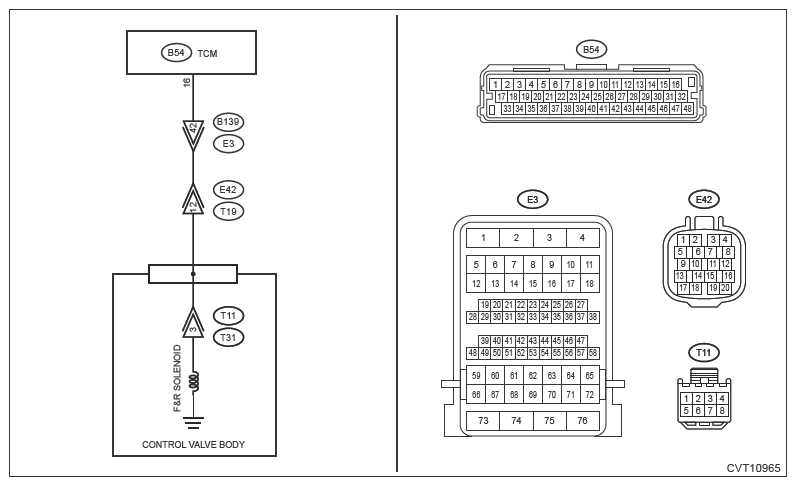

Wiring diagram:

CVT control system Ref. to WIRING SYSTEM>CVT CONTROL SYSTEM .

Courtesy of SUBARU OF AMERICA, INC.

1. CHECK DTC  .

   Read the DTC using Subaru Select Monitor. Ref. to TRANSMISSION (DIAGNOSTICS)>Diagnostic Trouble Code (DTC) .

   Besides DTC P0965, is DTC P0720, P0966, P0967, or P2751 displayed?

   Yes  : Perform the diagnosis according to DTCs other than P0965. Ref. to TRANSMISSION (DIAGNOSTICS)>Diagnostic Trouble Code (DTC)>LIST .

   No  : Go to  2.

2. CHECK F&R SOLENOID (ACTIVE TEST)  .
   1. Turn the ignition switch to ON.
   2. Using the Subaru Select Monitor, perform the active test for F&R solenoid. Ref. to TRANSMISSION (DIAGNOSTICS)>ACTIVE TEST .

      Is 300 → 500 → 700 mA indicated at the active test, and does [Actual Forward & Reverse Linear Solenoid Current] follow [Commanded Forward & Reverse Linear Solenoid Current]?

      Yes  : Go to  3.

      No  : Go to  4.

3. CHECK FOR POOR CONTACT  .

   Check for poor contact of harness and connector between TCM and F&R solenoid.

   Is there poor contact?

   Yes  : Repair the poor contact of harness and connector.

   No  : Recheck the poor contact of harness and connector. Replace the TCM if no fault is found. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TRANSMISSION CONTROL MODULE (TCM) .

4. CHECK F&R SOLENOID  .
   1. Turn the ignition switch to OFF.
   2. Disconnect the transmission connector.
   3. Measure the resistance between transmission connector and transmission body.

      Connector & terminal

      (T19) No. 12 - Transmission body:

      Is the resistance approximately 3.5 - 7.1 Ω? (When cold)

      Yes  : Replace the control valve body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>CONTROL VALVE BODY .

      No  : Repair or replace the harness.
