Jack-Up Point (When Using A Garage Jack)

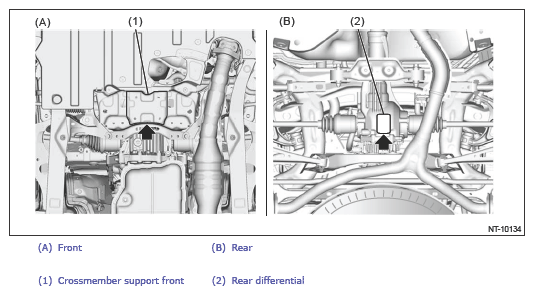

G13862128Courtesy of SUBARU OF AMERICA, INC.
CAUTION: If jacking up the front side of the vehicle, make sure that the jack is attached at the center of the jack-up plate not at the sides.
