DTC P2103: Throttle Actuator "A" Control Motor Circuit High: Notes

-
DTC detecting condition:

Immediately at fault recognition

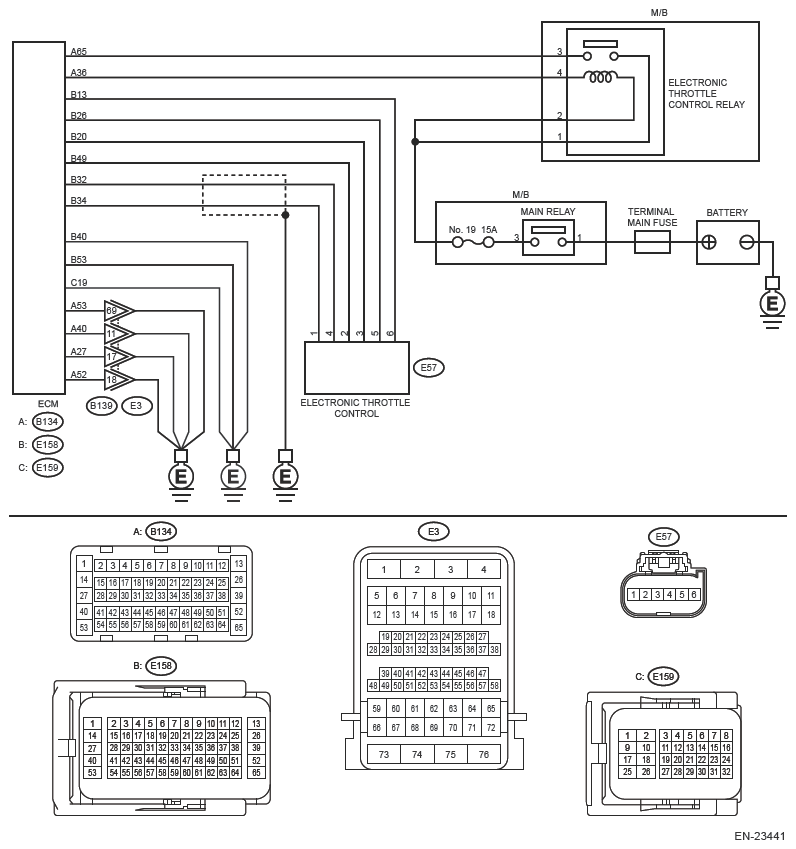

Wiring diagram:

Engine Electrical System Ref. to WIRING SYSTEM>ENGINE ELECTRICAL SYSTEM .

Courtesy of SUBARU OF AMERICA, INC.

CAUTION: Use the check board when measuring the ECM terminal voltage and resistance. Ref. to ENGINE (DIAGNOSTICS) (H4DOTC)>General Description>PREPARATION TOOL>HOW TO USE CHECK BOARD .

NOTE: After the faulty parts are repaired or replaced, perform the final check in Basic Diagnostic Procedure. Ref. to ENGINE (DIAGNOSTICS) (H4DOTC)>Basic Diagnostic Procedure>PROCEDURE .

CHECK ELECTRONIC THROTTLE CONTROL RELAY .
1. Turn the ignition switch to OFF.
2. Remove the electronic throttle control relay.
3. Measure the resistance between electronic throttle control relay terminals.
  Terminals

  No. 1 - No. 3:
Is the resistance 1 MΩ or more?

Yes : Go to 2.

No : Replace the electronic throttle control relay. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>ELECTRONIC THROTTLE CONTROL RELAY .
CHECK HARNESS BETWEEN ECM AND ELECTRONIC THROTTLE CONTROL RELAY (SHORT TO POWER SUPPLY) .
1. Turn the ignition switch to ON.
2. Measure the voltage between M/B (electronic throttle control relay) terminal and engine ground.
  Terminals

  No. 3 (+) - Engine ground (-):
Is the voltage 10 V or more?

Yes : Repair the short circuit to power in the harness between ECM connector and M/B (electronic throttle control relay).

No : Go to 3.
CHECK HARNESS BETWEEN ECM AND ELECTRONIC THROTTLE CONTROL RELAY (SHORT TO GROUND) .
1. Turn the ignition switch to OFF.
2. Disconnect the connector from ECM.
3. Measure the resistance between the ECM connector and engine ground.
  Connector & terminal

  (B134) No. 36 - Engine ground:
Is the resistance 1 MΩ or more?

Yes : Repair the poor contact of ECM connector.

No : Repair the short circuit to ground in the harness between ECM connector and M/B (electronic throttle control relay).
