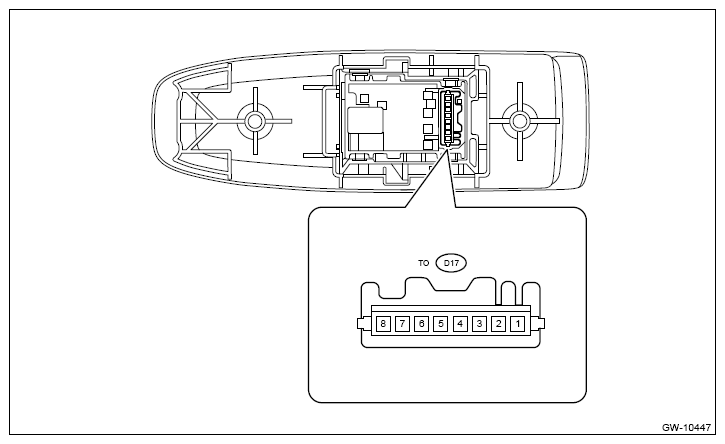

Power Window Sub-Switch
- Passenger's seat
Terminal No. Contents Measuring condition Standard (D17) No. 1 Power window switch AUTO - - (D17) No. 2 ↔ Chassis ground Power window switch GND Always Less than 1 Ω (D17) No. 3 - - - (D17) No. 4 - - - (D17) No. 5 Power window switch DOWN - - (D17) No. 6 Power window switch UP - - (D17) No. 7 Power window switch LED - - (D17) No. 8 - - - - Rear seat (other than base grade)
Terminal No. Contents Measuring condition Standard (D17) No. 1 - - - (D17) No. 2 ↔ Chassis ground Power window switch GND Always Less than 1 Ω (D17) No. 3 - - - (D17) No. 4 - - - (D17) No. 5 Power window switch DOWN - - (D17) No. 6 Power window switch UP - - (D17) No. 7 Power window switch LED - - (D17) No. 8 - - -
