Wiper Relay Unit: Installation

Install each part in the reverse order of removal.

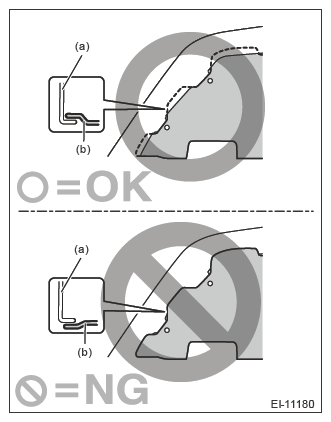

CAUTION: Install the mud guard front so that the front end of the mud guard (b), except for the clip fixing point, comes inside the bumper face (a).

Courtesy of SUBARU OF AMERICA, INC.

Install the wiper relay unit, and connect the connector.
Tightening torque:

7.5 N.m (0.8 kgf.m, 5.5 ft.lb)
Install the mud guard front RH.
Install the under cover front.
Tightening torque:

18 N.m (1.8 kgf.m, 13.3 ft.lb)
Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
