Check Memory Height Switch Input Circuit

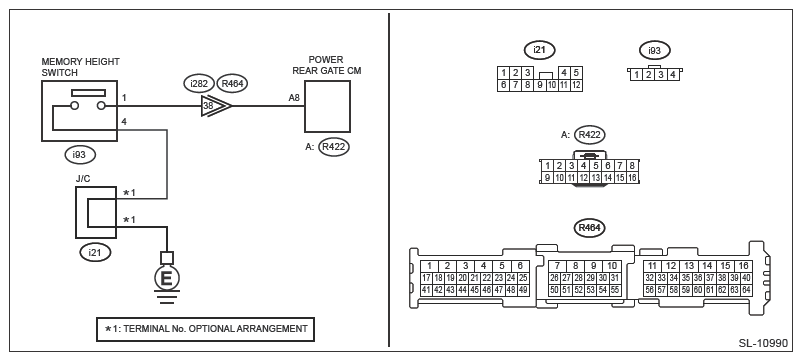

Wiring diagram:
Power rear gate system Ref. to WIRING SYSTEM>Power Rear Gate System>WIRING DIAGRAM .
- CHECK DATA MONITOR
.
Using Subaru Select Monitor, check [Memory stop SW]. Ref. to POWER REAR GATE (DIAGNOSTICS)>DATA MONITOR .
Does the display switch between OFF ←→ ON according to memory height switch operation?
Yes :
Input circuit is normal.
No :
Go to 2.
- CHECK HARNESS (OPEN CIRCUIT)
.
- Disconnect the Power rear gate control module connector in the order of (R423) → (R422).
- Disconnect the connector of memory height switch.
- Measure the resistance between Power rear gate control module connector and memory height switch connector.
Connector & terminal
(R422) No. 8 - (i93) No. 1:
Is the resistance less than 10 Ω?
Yes :
Go to 3.
No :
Repair or replace the open circuit of harness.
- CHECK HARNESS (GROUND SHORT CIRCUIT)
.
Measure the resistance between Power rear gate control module connector and chassis ground.
Connector & terminal
(R422) No. 8 - Chassis ground:
Is the resistance 1 MΩ or more?
Yes :
Go to 4.
No :
Repair or replace the short circuit of the harness.
- CHECK HARNESS (OPEN CIRCUIT)
.
Measure the resistance between the memory height switch connector and chassis ground.
Connector & terminal
(i93) No. 4 - Chassis ground:
Is the resistance less than 10 Ω?
Yes :
Go to 5.
No :
Repair or replace the open circuit of harness.
- CHECK MEMORY HEIGHT SWITCH
.
Check the resistance between memory height switch terminals.
Terminals
No. 1 - No. 4:
Is the resistance 1 MΩ or more at OFF, and less than 1 Ω at ON?
Yes :
Go to 6.
No :
Replace the memory height switch. Ref. to POWER REAR GATE SYSTEM>MEMORY HEIGHT SWITCH .
- CHECK CONNECTOR
.
Is there poor contact of connector?
Yes :
Repair or replace the poor contact of connector.
No :
Replace Power rear gate control module. Ref. to POWER REAR GATE SYSTEM>POWER REAR GATE CONTROL MODULE .
