Door Lock Assembly

• Front

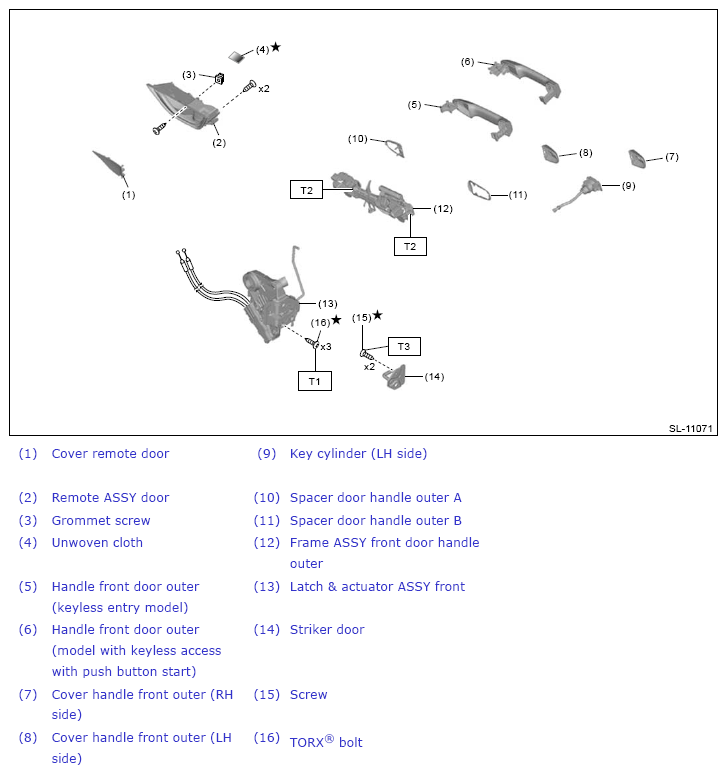

Fig 1: Exploded View Of Front Door Lock Assembly Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf.m, ft.lb)

T1: 6.5 (0.7, 4.8)

T2: 7.5 (0.8, 5.5)

T3: 18 (1.8, 13.3)

• Rear

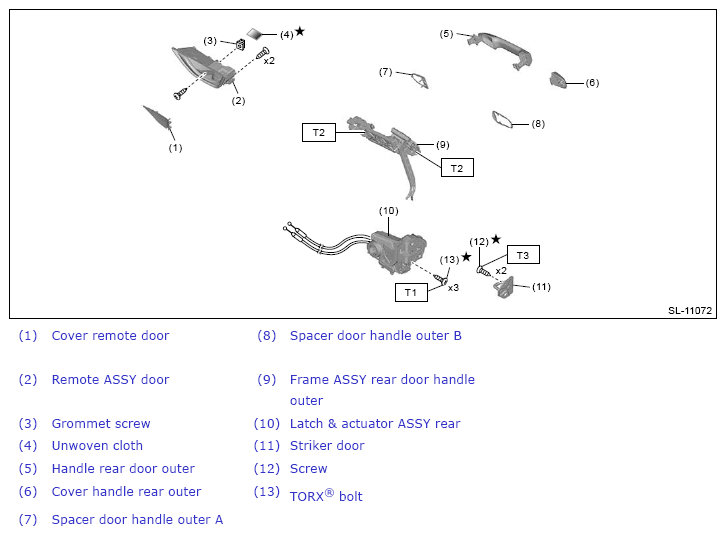

Fig 2: Exploded View Of Rear Door Lock Assembly Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf.m, ft.lb)

T1: 6.5 (0.7, 4.8)

T2: 7.5 (0.8, 5.5)

T3: 18 (1.8, 13.3)
