Steering Gearbox: Adjustment
- Adjust the front toe-in.
Refer to FRONT SUSPENSION>WHEEL ALIGNMENT>INSPECTION>FRONT WHEEL TOE-IN .
- Check the steering angle of the wheels.
Standard of steering angle:

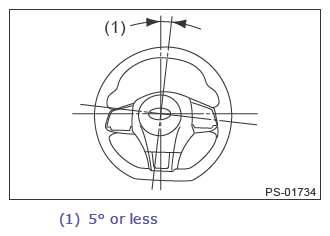

Inner wheel Outer wheel 36.3°±1.5° 32.0°±1.5° - If the steering wheel spokes are not horizontal when wheels are set in the straight ahead position, or error is more than 5° on the periphery of the steering wheel, correctly re-install the steering wheel.

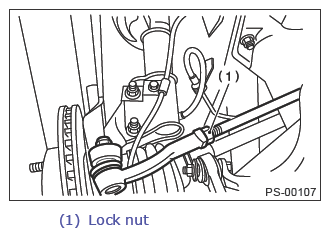

- If the steering wheel spokes are not horizontal with vehicle set in the straight ahead position after this adjustment, correct it by turning the right and left tie-rods in the opposite direction from each other by the same angle.
