Engine Oil Cooler: Installation

Install in the reverse order of removal.

NOTE:

Use a new gasket.

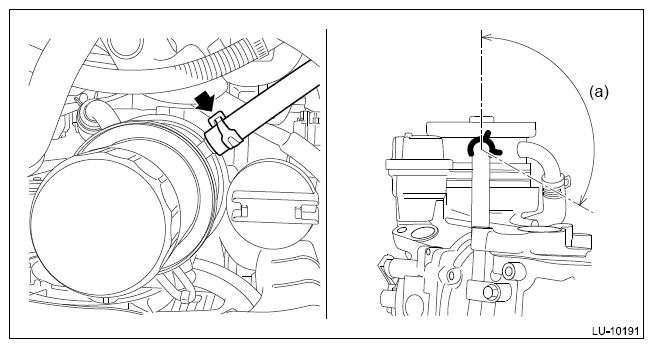

When connecting the side engine oil cooler hose A to the engine oil cooler, the direction of the clip claw should be matched within the position (a) shown in the figure.

Courtesy of SUBARU OF AMERICA, INC.

After installing, check the engine oil level and replenish it if necessary. Refer to LUBRICATION(W/O STI)>ENGINE OIL>INSPECTION .

Tightening torque:

45 N.m (4.6 kgf-m, 33.2 ft-lb)
