Rear Door Glass: Removal

  1. Disconnect the ground cable from battery. Refer to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the trim panel - rear door. Refer to EXTERIOR/INTERIOR TRIM>DOOR TRIM>REMOVAL>REAR DOOR .
  3. Remove the sealing cover - rear door. Refer to EXTERIOR BODY PANELS>REAR SEALING COVER>REMOVAL .
  4. Reconnect the battery ground terminal. Refer to NOTE>NOTE>BATTERY .
  5. Remove the glass assembly - rear door.
    1. Install the switch - power window and then turn the ignition switch to ON.
    2. Operate the switch - power window sub rear to move the glass assembly - rear door to the lowest position.
    3. Remove the running channel - rear door.
    4. Remove the screws and bolts, and then remove the sash COMPL - rear partition.
      G10270866Courtesy of SUBARU OF AMERICA, INC.

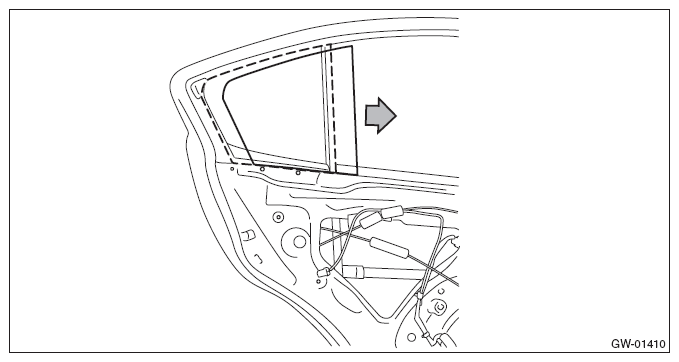

    5. Remove the glass - rear door partition.
      G10270867Courtesy of SUBARU OF AMERICA, INC.

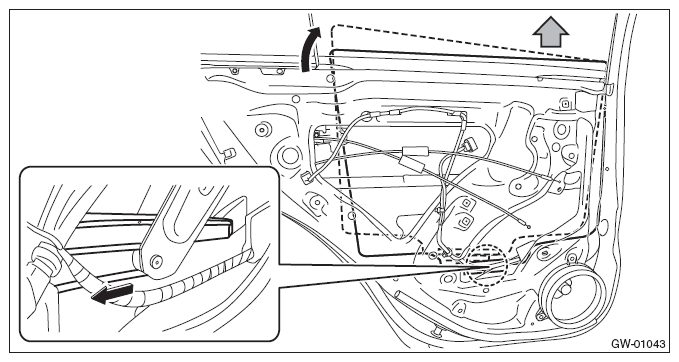

    6. While tilting the glass assembly - rear door, remove the guide from the roller of the regulator and motor assembly - rear, then remove the glass assembly - rear door.
      CAUTION: Avoid impact and damage to the glass assembly - rear door.
      G08315167Courtesy of SUBARU OF AMERICA, INC.
