Rear Speaker: Removal

  1. Disconnect the ground cable from battery. Refer to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the trim panel - rear door. Refer to EXTERIOR/INTERIOR TRIM>DOOR TRIM>REMOVAL>REAR DOOR .

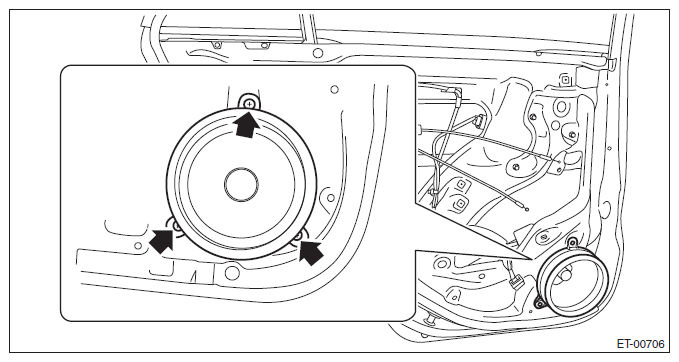

  3. Remove the speaker assembly - rear.
    1. Remove the screws.
    2. Disconnect the connector behind the speaker and remove the speaker assembly - rear.
      G08316593Courtesy of SUBARU OF AMERICA, INC.
