Tech Tips August 2021 (TIPS0821)

TECH TIPS AUGUST 2021

TECHNICAL INFORMATION TIPS

01 QMR OF THE MONTH

We are pleased to announce this month's QMR of the Month Winner:

June's winning QMR of the Month submission detailed the diagnosis and repair of 2020MY Outback Limited with customer concerns of the Reverse Automatic Braking, Blind Spot Monitoring, and Power Steering warning lights coming on intermittently. After road testing and verifying the warning light concerns would duplicate when driving over bumps and rough roads, Nicholas suspected a loose harness connection. He proceeded to perform a DTC scan revealing various loss of communication codes in the advanced safety CAN system. After review of the related wiring diagrams, the search was on for the suspected poor connection. While wiggle testing various sections of the instrument panel (IP) harness, Nicholas duplicated the concern approximately 8 inches below connector i52. Here, he found the IP harness had not been secured properly to a body clip and was rubbing against a steering column alignment pin. He proceeded to carefully dissect the harness in the affected area where two CAN system heat-shrink wrapped joint connectors are located, each containing 4 wires. Closer inspection revealed one of the 4 brown CAN wires was not secured to the other 3 within the shrink wrap causing the poor connection. Nicholas went further by inspecting both CAN joint connections, soldered and re-wrapped them then went on another "bumpy" road test to confirm the repair before reassembling the IP. His QMR detailed the diagnostic steps taken, test results and included multiple quality photos documenting the repair.

In appreciation for going the extra mile and sharing his experience with us, Nicholas will be receiving the following from his Field Service Engineer:

The other Regional winners selected from QMRs submitted during June 2021 were:

• Leo Gilmore  from Ruge's Subaru  in Rhinebeck, NY
• Chris Grad  from Ganley Subaru of Wickliffe  in Wickliffe, OH
• Josh Arnold  from Subaru of Corvallis  in Corvallis, OR
• Nicholas Thomson  from Clay Subaru  in Norwood, MA

Any Subaru Technician can participate in the QMR of the Month program. See the February 2013 and January 2016 issues of Tech TIPS for full details. You just might see your name and photo in a future issue of Tech TIPS!

01 QMR OF THE MONTH AWARD PRESENTATIONS

As part of our "enhanced" QMR of the Month recognition program, we will include a photo (whenever available) of the recipient's award presentation in TIPS. The winner selected from QMR of the Month submission received during June 2021 was Nicholas Lehman, a Technician from Capital Subaru of Greensboro in Greensboro, NC.

Nicholas is shown above being presented with his $500.00 Snap-On Gift Card. Pictured here (left to right) are General Manager, Ashley Murphy, Field Service Engineer, Joseph Marchica, June's winning Technician, Nicholas Lehman, and Service Director, Lamar Bordeaux. Congratulations and THANK YOU to our June 2021 QMR of the Month Award recipient!

02 NEW AND REMANUFACTURED SHORT BLOCK REPLACEMENT TIPS & BREAK-IN PROCEDURE

1. Packaging, serial numbers and documentation.

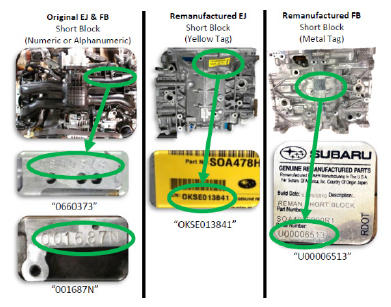

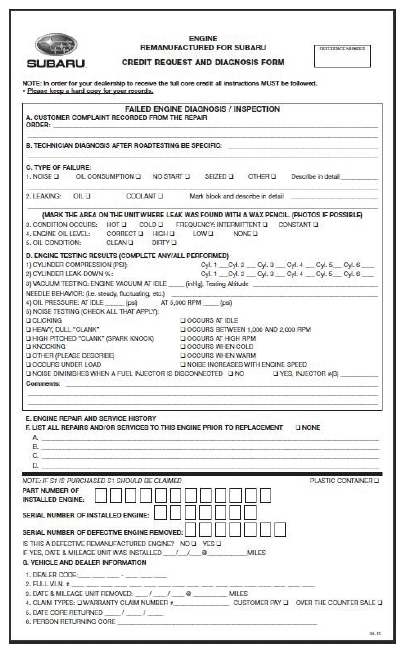

   When receiving a crated short block assembly, be sure to inspect for exterior damage to the box/crate/plastic shipping container. Document and report any damage to your parts representative. After opening the box, it is good practice to immediately document the short block serial numbers. These numbers will be necessary to complete The Credit Request and Diagnosis Form.  This form needs to be completed with EVERY  short block replacement and can be found under the Forms and Downloads section on Subarunet. It is a good practice to attach a copy of the completed form with the Repair Order. If your retailer has an electronic DMS (Dealer Management System; ie, ADP or CDK), Techline recommends taking a picture of the serial number or tag, and saving it. If you are not familiar with identifying these number sets, please refer to document code SNLG_01; Serial Number Location Guide  on STIS.

   Remanufactured Block serial number missing?

   When receiving a remanufactured short block assembly, it may be found that the old serial number is ground off. This is normal for remanufactured short block engines only.  Please use the metal tag glued to the top center of the block for serial number identification.

   NOTE: On some models, the plate is covered by the coolant crossover pipe and will not be able to be read after installation.
2. Short block inspection and preparation.

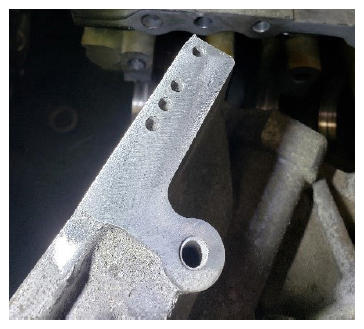

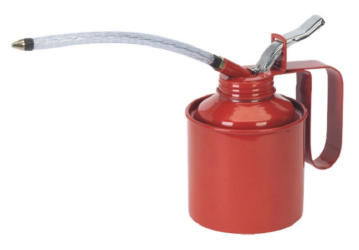

   When removing the engine from the crate, inspect the cylinder walls and machining. Make sure no damage to the mating surfaces is found (gouges, sever pitting, etc). If no lubrication is found on the cylinder walls, apply a thin coat of clean engine oil to the cylinder wall surface with an oil squirt can. DO NOT use a rag or fiber towel.  If a large puddle of oil is found at the bottom of the crate, or in the plastic wrap, apply a light coating of clean engine oil across the crankshaft journals (engine upside down). This should be done before any other components are installed onto the short block. After application, rotate the crankshaft clockwise one full rotation (still upside down) to have gravity help move the oil down onto the bearings. The crankshaft keyway should be returned to its original starting point (continuing in a clockwise rotation) to coincide with engine timing chain installation. Do not rotate the crank shaft counterclockwise other than when instructed in the timing chain installation instructions.

   Be sure to review 02-157-14R, starting on page 7, for valuable information about cleaning, inspection and assembly of chain driven engine components.

3. Engine Break-in recommendations

   There are several myths surrounding proper break in procedures for a new/freshly rebuilt engine. However, the Subaru recommended break-in procedure for naturally aspirated and turbocharged engines, can be found in the Owner's Manual. These recommendations cover all situations and circumstances.

   Before installing the long block assembly into the vehicle, rotate the engine clockwise several full rotations BY HAND,  with the engine filled to the proper level. The crankshaft counterweight will be soaked in oil and help lubricate the internal surfaces throughout. This will also supply oil to the main pump and saturate it. If any binding is felt or the engine will not rotate, STOP, do not force the rotation. This could lead to broken components.  Instead, inspect for craftsmanship errors.

   NOTE: Turbo engine head gaskets have different specifications compared to the N/A engine head gaskets.

   Under NO  circumstance should the starter be used to prime the engine with engine oil pressure. NEVER use clear flood mode to prime the engine with oil pressure.

   It is best to have the engine ready to start, on a cold start, and let it run.

   412 New Vehicle Break-In Driving

   8-1. New Vehicle Break-In Driving - the First 1, 000 miles (1, 600 km)

   The performance and long life of your vehicle are dependent on how you handle and care for your vehicle while it is new. Follow these instructions during the first 1, 000 miles (1, 600 km):

   • Do not race the engine. And do not allow engine speed to exceed 4, 000 rpm except in an emergency.
   • Do not drive at one constant engine or vehicle speed for a long time, either fast or slow.
   • Avoid starting suddenly and rapid acceleration, except in an emergency.
   • Avoid hard braking, except in an emergency.

   The same break-in procedures should be applied to a newly installed or overhauled engine or when brake pads are replaced with new ones.

07 DOOR LOCK BATTERY BACK UP UNIT

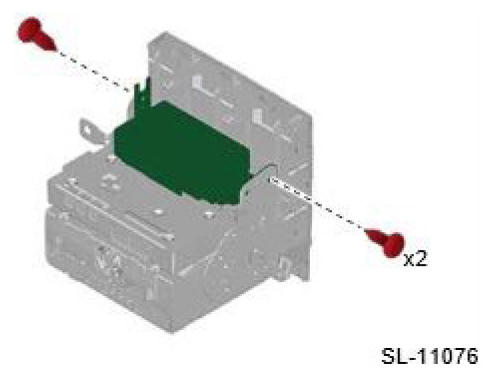

Techline has received calls about identifying a newly implemented device for the door lock system. The Battery Back Up power source was implemented into vehicles outlined in the chart below. The Battery Back Up unit provides power to the door locks in the event of a collision that disables the standard 12v power source. When the vehicle receives a strong impact, all the doors and the rear gate are automatically unlocked, so as not to trap the vehicle occupants. The device is mounted above or near the audio unit in most cases. Refer to STIS for specific model removal/installation, and inspection.

Ascent	MY19 and Newer
Outback/Legacy	MY20 and Newer
Impreza	MY20 and newer (does not include WRX/STI)
Crosstrek	MY21 and newer
Forester	MY19 and newer

09 WON'T TAKE FUEL CONCERNS - REVISITED

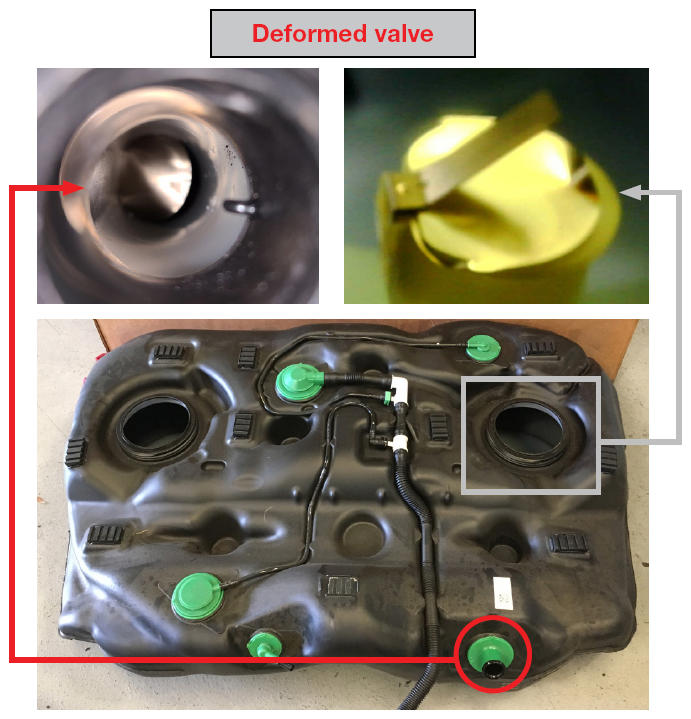

If encountering a vehicle with a customer concern of difficulty filling the fuel tank, do not overlook the July 2017 and September 2017 Tech TIPS. If the filler neck, EVAP vent line and EVAP filter are free and clear, look at the internal flapper valve of the fuel tank. This can be done easily with a borescope. Start by removing the inlet hose off the tank and perform the inspection. Confirm your findings by removing the fuel pump and inspecting the flapper valve from the inside of the tank. The photos below are an example of a deformed flapper valve.

15 GEN 3, 3.1 AND 3.1 ALPHA HARMAN AND GEN 4 DENSO CP1 - CHECK FOR CONFLICTING ACCESSORIES PRIOR TO PERFORMING A SOFTWARE UPDATE VIA USB PORT

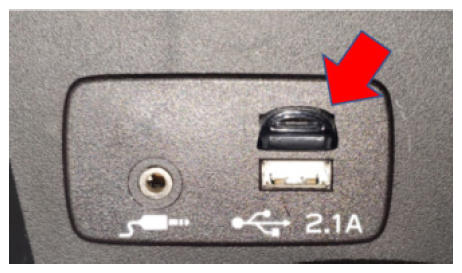

Prior to performing a software update via USB thumb drive, please check the USB Port for the presence of conflicting accessories (ex: additional thumb drives, chargers, etc.). Please remove all accessories connected to USB Port prior to performing update. Leaving conflicting accessories connected while performing an update may result in black display or the update failing.

Example:

15 GEN 3 BLUETOOTH STREAMING STUTTERING ISSUE UPDATE AKA BT SKIPPING WITH APPLE WATCH PAIRED

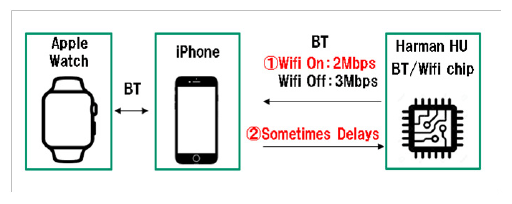

Techline has received reports from the field regarding stuttering/skipping concern while a customer is streaming music via Bluetooth connection with phone device. It was found the concern was consistent when the customer had their Apple Watch paired via Bluetooth to their phone device, and their Phone Device Paired via Bluetooth to the Head unit.

The following steps have been provided for a work around of the concern.

1. Confirm Wi-Fi status of the Head Unit (ON/OFF)
   1. To Access Wi-Fi Status: Settings > Wi-Fi
      • Gen 3 Bluetooth streaming stuttering issue update AKA BT Skipping with Apple watch paired
   • For item 1, please request to confirm Wi-Fi status and verify the concern is duplicated with Wi-Fi OFF.
     • Temporary workaround: set Wi-Fi to OFF
   • For item 2, Apple is preparing a permanent fix. No schedule is available.

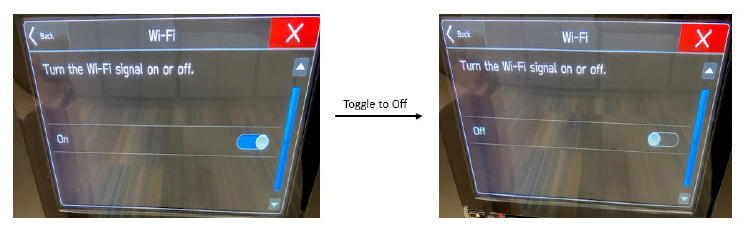

2. If Wi-Fi Status is set to ON  , please turn it OFF  . Once the Wi-Fi setting is turned OFF  , this will alleviate the reported concern and the customer will be able stream music as intended via Bluetooth.

00 STIS NEW RELEASES

ITEM CODE	ITEM TYPE	TITLE	CREATED DATE
WRE-21R	Subaru Product/Campaign Bulletin	Ignition Coil Replacement	31-Aug-21
09-74-21R	Technical Service Bulletin	Cleaning Procedure for Carbon...	30-Aug-21
WRD-20R	Subaru Product/Campaign Bulletin	Fuel Pump Impeller Failure	27-Aug-21
07-199-21R	Technical Service Bulletin	Measurement of Dark Current (S...	27-Aug-21
15-286-21	Technical Service Bulletin	Telematics Diagnostic Strategy	26-Aug-21
12-322-21	Technical Service Bulletin	Cross Bar Integrated Roof Rail...	25-Aug-21
07-198-21	Technical Service Bulletin	Engine Not Starting/Excessiv...	25-Aug-21
15-285-21R	Technical Service Bulletin	Gen 2 Head Unit Identification...	24-Aug-21
WRG-21	Subaru Product/Campaign Bulletin	Fuel Pump Impeller Failure	24-Aug-21
L101SAN000	Accessory Installation Guide	PORT INSTALLATION: 2022MY Outb...	23-Aug-21
18-216-21	Service Manual Correction	Service Manual Corrections	23-Aug-21
18-215-21	Service Manual Correction	Service Manual Corrections	23-Aug-21
09-77-21R	Technical Service Bulletin	Lack of Power/Hesitation Dur...	19-Aug-21
06-78-20R	Technical Service Bulletin	2019-20 MY Ascent Brake Pad De...	18-Aug-21
12-224-21	Technical Service Bulletin	Trailer Hitch Fascia Panel/L...	13-Aug-21
