Transmission Case: Disassembly

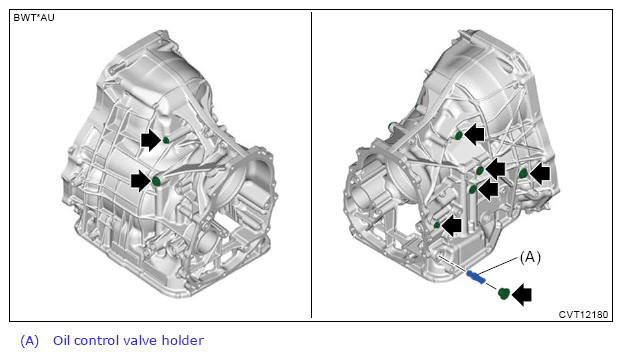

  1. Remove each plug and oil control valve holder.
    G13622230Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the lubrication pipe.
    G13622231Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the O-rings.
    G13622232Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the snap ring on the primary pulley side.
    G13622233Courtesy of SUBARU OF AMERICA, INC.
  5. Using the ST, remove the roller bearing.

    Preparation tool:

    ST: PULLER ASSY (398527700)

    G13622234Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the spacer.
    G13622235Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the snap ring on the secondary pulley side.
    G13622236Courtesy of SUBARU OF AMERICA, INC.

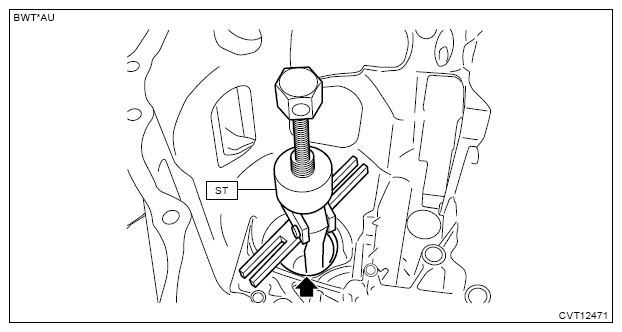

  8. Using the ST, remove the roller bearing.

    Preparation tool:

    ST: PULLER ASSY (398527700)

    G13622237Courtesy of SUBARU OF AMERICA, INC.
  9. Remove the ball bearing on the reduction driven gear side using ST.

    Preparation tool:

    ST: PULLER ASSY (398527700)

    G13622238Courtesy of SUBARU OF AMERICA, INC.
