Oil Pump Chain: Installation

Press-fit a new oil seal using ST and a press.
NOTE: Apply CVTF to the press-fitting area.

Preparation tool:

ST: HOUSING BUSHING INSTALLER AND REMOVER (927720000)

Courtesy of SUBARU OF AMERICA, INC.

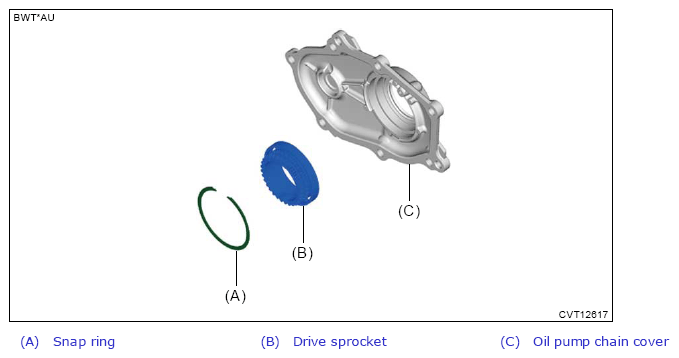

Install the drive sprocket and snap ring.
NOTE: Align the snap ring opening with the position (a) shown in the figure.

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.
Place the oil pump chain (B) on the drive sprocket (A).

Courtesy of SUBARU OF AMERICA, INC.
Place the oil pump chain (B) on the driven sprocket (A), and install the driven sprocket (A) to the oil pump chain cover (C).

Courtesy of SUBARU OF AMERICA, INC.
Install a new seal ring.
NOTE:
- Apply CVTF to the seal rings.
- Do not stretch the seal ring more than necessary.
Courtesy of SUBARU OF AMERICA, INC.
Apply liquid gasket to the mating surface of the converter case cover as shown in the figure, and temporarily install the oil pump chain cover.
NOTE:
- Before applying liquid gasket, degrease the liquid gasket seal surface of the oil pump chain cover and converter case cover.
- Install within 5 min. after applying liquid gasket.
Liquid gasket:

THREE BOND 1215B or equivalent

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

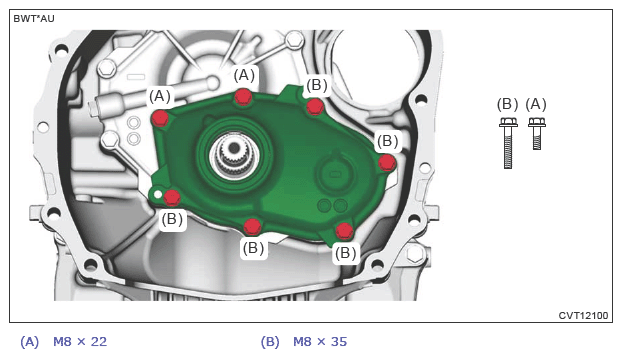

Tighten the oil pump chain cover mounting bolts.
Tightening torque:

24 N.m (2.4 kgf-m, 17.7 ft-lb)
Install the torque converter. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Torque Converter>INSTALLATION .
