Crankshaft And Piston

WARNING: This page is about a different variant/trim than selected.

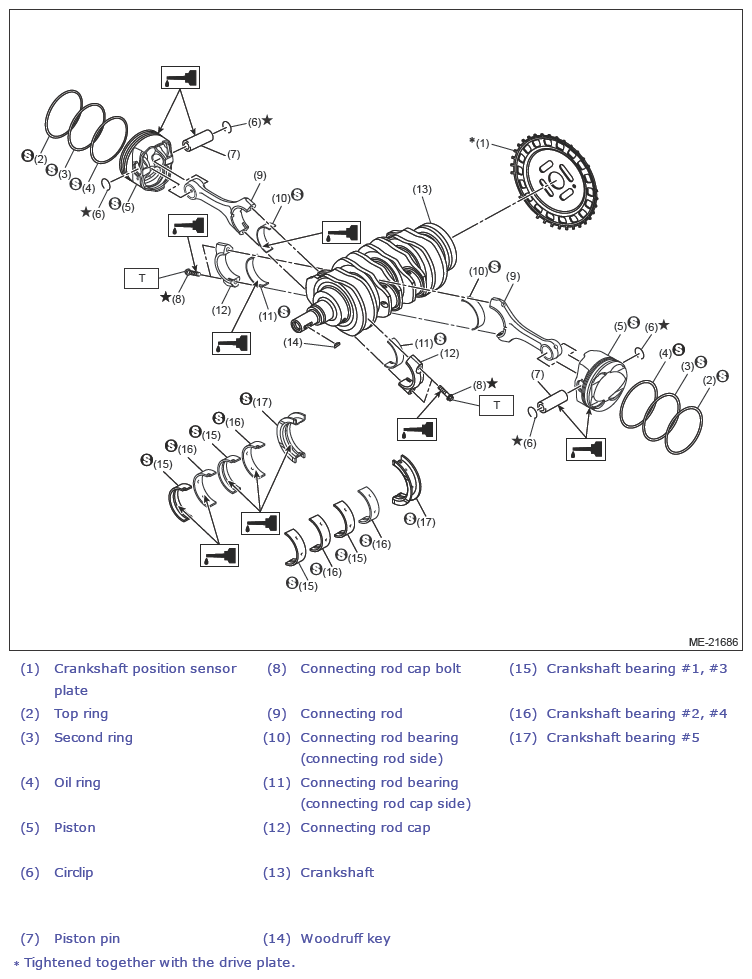

Fig 1: Crankshaft And Piston Components (With Torque Specification)
G13618780Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T:  Refer to MECHANICAL (H4DO)>Cylinder Block>INSTALLATION .
