Transmission Assembly: Removal

  1. Release the parking brake.
  2. Disconnect the ground terminal from battery sensor. Refer to REPAIR CONTENTS>NOTE>BATTERY .
  3. Remove the mat center tray.
    G13620985Courtesy of SUBARU OF AMERICA, INC.
  4. Release the shift lock using a screwdriver, etc. and shift the select lever to the "N" range.
    G13620986Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the clip from the air intake boot, and loosen the clamp.
    G13618350Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the air intake boot, and place it aside so that it does not interfere with the work.
    CAUTION: Be careful not to pull out the PCV hose.
    G13618351Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the CVTF cooler (with warmer feature).
    NOTE: Prepare the container for draining of engine oil.
    1. Remove the CVTF cooler outlet hose. (Model with CVTF cooler (air cool))
      G13621573Courtesy of SUBARU OF AMERICA, INC.
    2. Remove the CVTF cooler inlet hose. (Model with CVTF cooler (air cool))
      G13621574Courtesy of SUBARU OF AMERICA, INC.

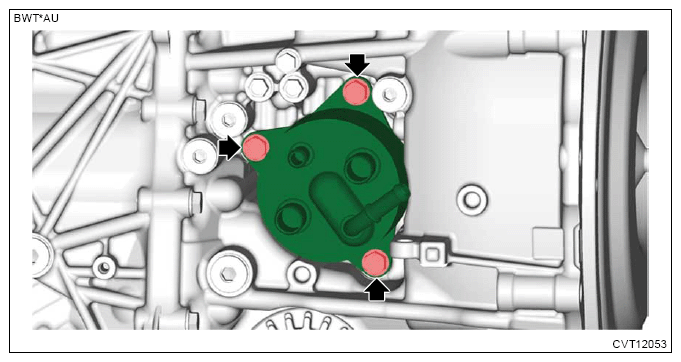

    3. Remove the CVTF cooler (with warmer feature), and move it aside so that it does not interfere with the operation.
      NOTE:
      G13621575Courtesy of SUBARU OF AMERICA, INC.
    4. Remove the O-rings.
      G13603116Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the engine rear hanger.
    G11255514Courtesy of SUBARU OF AMERICA, INC.
  9. Disconnect the transmission harness connector from the engine wiring harness.
    G11255510Courtesy of SUBARU OF AMERICA, INC.
  10. Remove the engine wiring harness stay.
    1. Remove the bolt (A) securing the engine ground and the harness case, and remove the clip (B).
    2. Remove the bolts securing the engine wiring harness stay, and remove the engine wiring harness stay.
    G13621579Courtesy of SUBARU OF AMERICA, INC.
  11. Remove the TCM. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Transmission Control Module (TCM)>REMOVAL .
  12. Remove the starter. Refer to STARTING/CHARGING SYSTEMS (H4DO)>Starter>REMOVAL .
  13. Separate the torque converter from drive plate.
    1. Remove the PCV hose No. 1. Refer to EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES) (H4DO)>PCV Hose>REMOVAL>PCV HOSE NO. 1 .
    2. Disconnect the connector (A), and remove the plug (B) from the service hole.
      G13618840Courtesy of SUBARU OF AMERICA, INC.
    3. Insert the wrench into the crank pulley bolt, and rotate the crank pulley to remove the bolts (4 places) securing the torque converter to the drive plate.
      G13603122Courtesy of SUBARU OF AMERICA, INC.
    4. Attach the ST to the converter case.

      Preparation tool:

      ST: STOPPER SET (498277200)

    G13618842Courtesy of SUBARU OF AMERICA, INC.
  14. Remove the bolts which hold the upper side of the transmission.
    G13600632Courtesy of SUBARU OF AMERICA, INC.
  15. Set the ST1 and ST2.

    Preparation tool:

    ST1: ENGINE SUPPORT BRACKET (41099AA012)

    ST2: ENGINE SUPPORT (41099AA020)

    G11255524Courtesy of SUBARU OF AMERICA, INC.
  16. Drain the CVTF. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>CVTF>REPLACEMENT .
  17. Drain differential gear oil. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Differential Gear Oil>REPLACEMENT .
  18. Remove the front drive shaft. Refer to PROPELLER SHAFT/DRIVE SHAFT/AXLE>Front Drive Shaft>REMOVAL .
  19. Remove the propeller shaft. Refer to PROPELLER SHAFT/DRIVE SHAFT/AXLE>Propeller Shaft>REMOVAL .
  20. Remove the exhaust hanger bracket.
    G11255529Courtesy of SUBARU OF AMERICA, INC.
  21. Disconnect the select cable from the transmission main body.
    CAUTION: Do not apply excessive load while holding the part (a).
    G13591814Courtesy of SUBARU OF AMERICA, INC.
    G13225470Courtesy of SUBARU OF AMERICA, INC.
  22. Remove the CVTF CVT inlet hose and CVTF CVT outlet hose. (Model with CVTF cooler (air cool))
    NOTE: Prepare the container for draining of engine oil.
    G13621588Courtesy of SUBARU OF AMERICA, INC.
  23. Remove the bolts and nuts which hold the lower side of transmission.
    G13600620Courtesy of SUBARU OF AMERICA, INC.
  24. Set the transmission jack under the transmission.
    CAUTION: Make sure that the support plates of transmission jack do not touch the oil pan.
  25. Remove the transmission rear crossmember. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Transmission Mounting System>REMOVAL>TRANSMISSION REAR CROSSMEMBER AND REAR CUSHION RUBBER .
  26. While lowering the transmission jack gradually, fully retract the ST (ENGINE SUPPORT), and then tilt the engine rearward.
  27. Remove the transmission body.
    NOTE: Adjust the position and angle of the transmission jack so that the engine and the transmission are aligned straight.
  28. Remove the rear cushion rubber. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Transmission Mounting System>REMOVAL>TRANSMISSION REAR CROSSMEMBER AND REAR CUSHION RUBBER .
  29. Remove the transmission cover (rear).
    G13603130Courtesy of SUBARU OF AMERICA, INC.

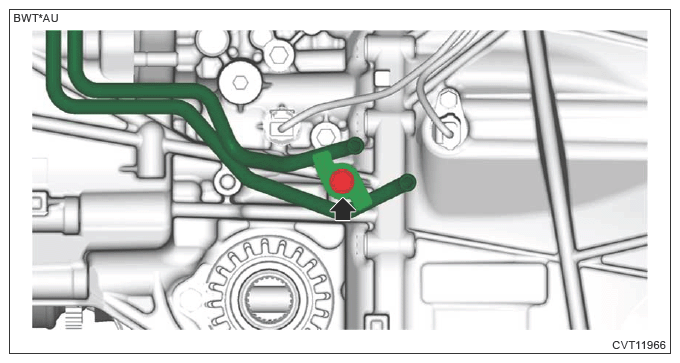

  30. Remove the CVTF cooler pipe No. 1. (Model with CVTF cooler (air cool))
    G13621591Courtesy of SUBARU OF AMERICA, INC.
  31. When overhauling the transmission body, refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Preparation for Overhaul>PROCEDURE .
