CVTF Cooler (With Warmer Feature)

• Model with CVTF cooler (air cool)
  Fig 1: CVTF Cooler (With Warmer Feature) Components (With Torque Specification) - Model With CVTF Cooler, Air Cool

  Courtesy of SUBARU OF AMERICA, INC.

  Tightening torque: N.m (kgf-m, ft-lb)

  T: 19 (1.9, 14.0)

• Model without CVTF cooler (air cool)

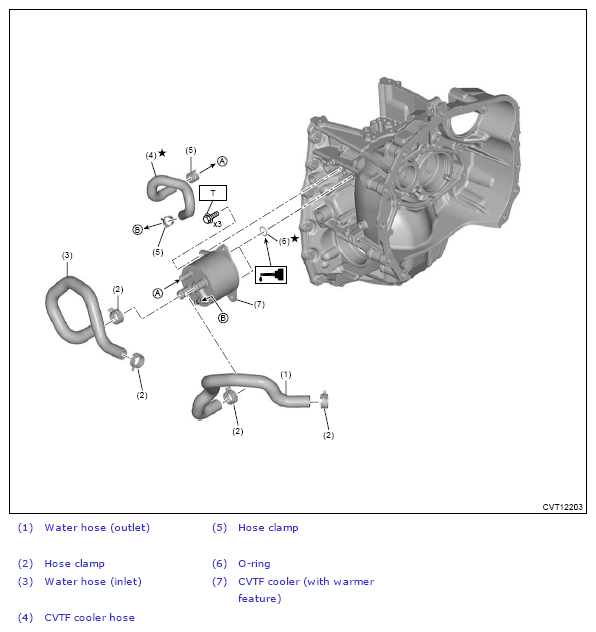

  Fig 2: CVTF Cooler (With Warmer Feature) Components (With Torque Specification) - Model Without CVTF Cooler, Air Cool

  Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 19 (1.9, 14.0)
