Data Monitor: List
| Item | Content/display range | Standard | Note |
|---|---|---|---|
| FL Tire status | Status of the front left transmitter | 00000000 - 11111111 | For details, refer to the Notes in the margin. |
| FR Tire status | Status of the front right transmitter | ||
| RR Tire status | Status of the rear right transmitter | ||
| RL Tire status | Status of the rear left transmitter | ||
| FL Tire air pressure | Value converted to tire pressure from data delivered from transmitter is displayed. (The figure may differ from the actual measured values.) | 0 - 351.645 kPa | - |
| FR Tire air pressure | 0 - 351.645 kPa | - | |
| RR Tire air pressure | 0 - 351.645 kPa | - | |
| RL Tire air pressure | 0 - 351.645 kPa | - | |
| Vehicle Speed | Vehicle speed signal which is input in control module | 0 - 255 km/h | - |
| Pressure warning | Threshold where tire pressure warning light illuminates | 0 - 351.645 kPa | - |
| Return pressure | Threshold where tire pressure warning light goes out | 0 - 351.645 kPa | - |
| Transmitter power supply | Transmitter power supply status | ON MODE/OFF | - |
| INDICATOR LAMP | Status of tire pressure warning light | ON/OFF | - |
| FL Registered ID | ID of the front left transmitter | 0 - FFFFFFFF | - |
| FR Registered ID | ID of the front right transmitter | 0 - FFFFFFFF | |
| RR Registered ID | ID of the rear right transmitter | 0 - FFFFFFFF | |
| RL Registered ID | ID of the rear left transmitter | 0 - FFFFFFFF | |
| Latest reception ID | The former reception ID | 0 - FFFFFFFF | |
| Reception ID one ahead | The second former reception ID | 0 - FFFFFFFF | |
| Before reception ID2 | The third former reception ID | 0 - FFFFFFFF | |
| Before reception ID3 | The fourth former reception ID | 0 - FFFFFFFF |

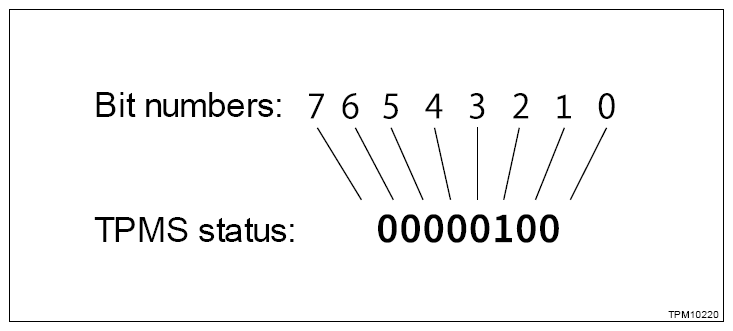

NOTE:
Conversion of Bit2-0
| Bit | Data | Condition | |
|---|---|---|---|
| 7 | Low Battery | Shows the remaining battery level. | 0: Normal 1: Low level |
| 6 | Sensor Fail | Shows the malfunction of TPMS. | 0: Normal 1: Malfunctioning |
| 5 | LF Response | Shows the responding transmission to the LF signal. | 0: Transmission for other than LF response 1: Transmission for LF response |
| 4 | PAL Condition | Shows the status of position information. | 0: Position detection finished 1: Position detection in progress |
| 3 | Rolling Detection | Shows the status of tire rotation detection. | 0: Tire stop status detected 1: Tire rotation status detected |
| 2-0 | Status code | Shows the status in valve transmission. | 0: Responding to the LF signal "Learn LF"
|
Conversion of Bit2-0
| SSM display | |
|---|---|
| 0 | 000 |
| 1 | 001 |
| 2 | 010 |
| 3 | 011 |
| 4 | 100 |
| 5 | 101 |
| 6 | 110 |
| 7 | 111 |
