Rear Lateral Link (front): Assembly
- Before assembly, inspect the following items and replace any faulty part with a new one.
- Visually check the rear lateral link assembly front for damage and deformation.
- Visually check the bushing for abnormal cracks, fatigue or damage.
- Visually check the boot on the ball joint for damage.

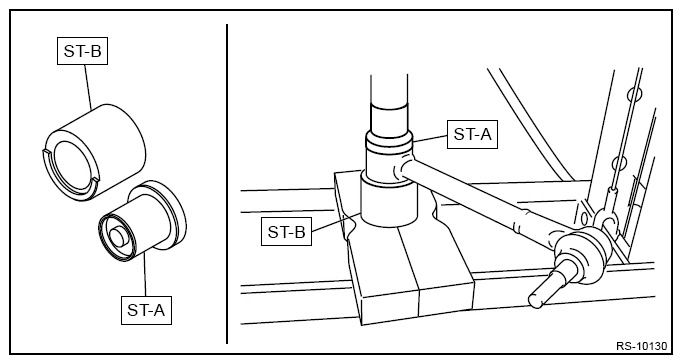

- Using the ST, press-fit the rubber bushing lateral link front.CAUTION: Make sure to press the bushing straight in.
Preparation tool:
ST-A & ST-B: INSTALLER & REMOVER (20099AE000)
